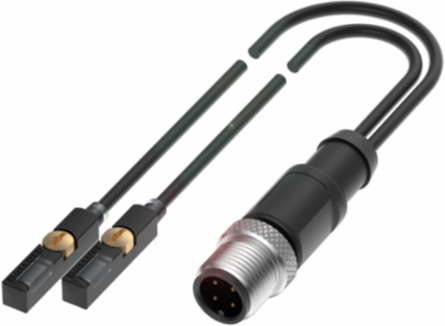

Balluff BMF 235K-PS-C-2A-SA95-S4-00,3 Magnetic Field Sensor for T-Slot, IP67, 23.5 x 5 x 5.5 mm
Balluff BMF 235K-PS-C-2A-SA95-S4-00,3 Magnetic Field Sensor for T-Slot, IP67, 23.5 x 5 x 5.5 mm
- MPN: BMF 235K-PS-C-2A-SA95-S4-00,3
- PPN: BAL-BMF00C9
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$95.56/ EA
Description
Designed for precision and reliability, the magnetic field sensors from Balluff are ideal for integration into pneumatic cylinders equipped with T-slots. With a robust construction that meets IP67 standards, these sensors operate effectively in challenging environments, withstanding temperatures ranging from -25 to 85 °C. Featuring a compact design of 23.5 x 5 x 5.5 mm, they offer a switching frequency of up to 3000 Hz and a PNP normally open output, ensuring quick and accurate responses in your applications. The sensor is easy to install, with a connection type of M12x1-Male, 4-pin, A-coded, making it a versatile choice for various industrial settings.
Specifications
Specifications
- Country of Origin
- Hungary
- Principle of operation
- Magnetic field sensor
- Cable
- PUR, 0.3 m
- Fastening detail
- can be installed in T-slot from above
- Switching output
- PNP Normally open (NO)
- Operating voltage Ub
- 10...30 VDC
- IP rating per IEC 60529
- IP67
Dimension23.5 x 5 x 5.5 mm
ConnectionM12x1-Male, 4-pin, A-coded
ApplicationPneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Housing materialPA 12
Switching frequency3000 Hz
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
