Balluff BMF 204K-PS-C-2A-SA95-S4-00,3 Magnetic Field Sensor for C-Slot, PA 12, IP67, 7000 Hz
- MPN: BMF 204K-PS-C-2A-SA95-S4-00,3
- PPN: BAL-BMF0005
CAD
$118.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

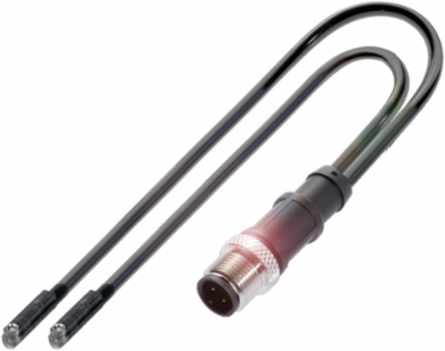

Magnetic Field Sensor for C-Slot, PA 12, IP67, 7000 Hz
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 7000 Hz |
|---|---|
| Ambient Temperature | -25...85 C |
| Connection | M12x1-Male, 4-pin, A-coded |
| Cable | PUR, 0.3 m |
| IP Rating | IP67 |
| Principle of Operation | Magnetic field sensor |
| Country of Origin | Hungary |
| Operating Voltage | 10...30 VDC |
|---|---|
| Dimension | 16.8 x 2.9 x 4.5 mm |
| Fastening Detail | C-slot; Sommer; Festo slot 10 |
| Housing Material | PA 12 |
| Switching Output | PNP Normally open (NO) |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
