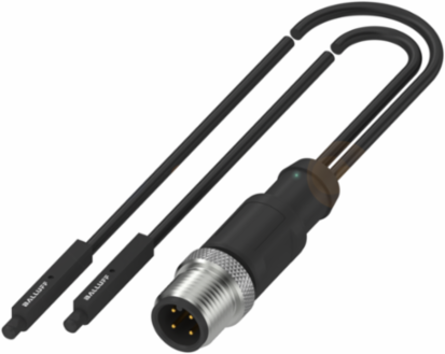

Balluff BMF 303K-PS-C-2A-SA95-S4-00,3 Magnetic Field Sensor 25.5x3x4.5mm, IP67, 30000Hz
- MPN: BMF 303K-PS-C-2A-SA95-S4-00,3
- PPN: BAL-BMF004E
CAD
$185.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Field Sensor 25.5x3x4.5mm, IP67, 30000Hz
Documentation & Downloads
Specifications
Additional
| Switching frequency | 30000 Hz |
|---|---|
| Dimension | 25.5 x 3 x 4.5 mm |
| Housing material | LCP |
| Cable | PUR, 0.3 m |
| Switching output | PNP Normally open (NO) |
| Fastening detail | Mounting bracket BMF 303-HW* |
| Country of Origin | Hungary |
| Operating voltage | 10...30 VDC |
|---|---|
| IP rating | IP67 |
| Connection | M12x1-Male, 4-pin, A-coded |
| Ambient temperature | -25...85 C |
| Principle of operation | Magnetic field sensor |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Application | miniaturized actuators |
