Schmersal 101186266 Magnetic Safety Sensor, 140 mm x 119.5 mm, 2 Safety Contacts, IP67
- MPN: 101186266
- PPN: SCM-101186266
CAD
$206.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

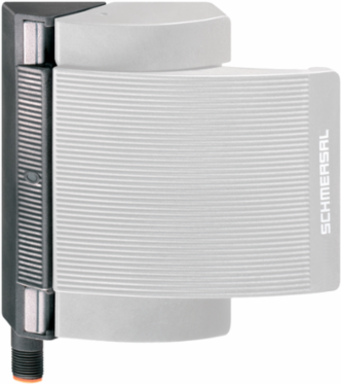

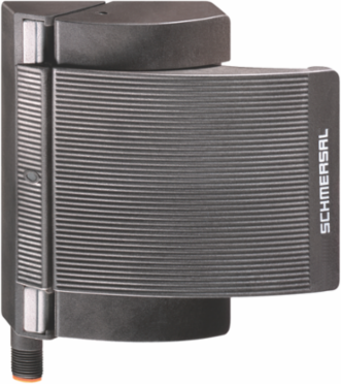

Magnetic Safety Sensor, 140 mm x 119.5 mm, 2 Safety Contacts, IP67
Features
- Pre-wired cable
- Thermoplastic enclosure
- Non-contact safety switch
- Does not protrude into the door opening
- 119,5 mm x 140 mm x 43,3 mm
- Substitutes door-handle and safety switch, no further door fittings required
- Modern and symmetric design
- Tamper-proof because of integral coded safety sensor
- Ergonomic operation
- Suitable for hinged and sliding guards
- No protruding actuator
- Simple mounting with 4 Screws
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 100 VAC
- Switching current, maximum
- 0.01 A
- Switching frequency, maximum
- 5 Hz
Switching voltage, maximum24 VDC
Switching capacity, maximum0.2 W
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. | Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.

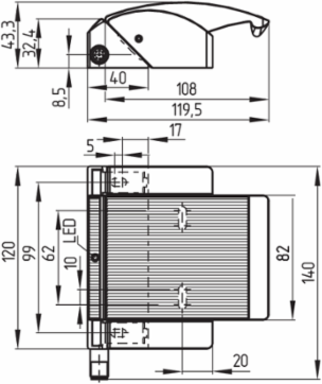

Mechanical data - Dimensions
- Length of sensor
- 43.3 mm
- Height of sensor
- 140 mm
Width of sensor119.5 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
General data - Features
- Integral system diagnostics, status
- Yes
- Number of normally open (NO)
- 1
- Number of cable wires
- 6
Number of normally closed (NC)2
Number of safety contacts2
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight143 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)

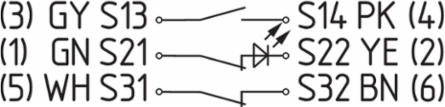

Wiring example
- Note (Wiring diagram)
- Contact S21-S22 must be integrated in the safety circuit.
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Cable entry
- bottom
- Material of the Cable mantle
- PVC
Length of cable1 m
Wire cross-section0.25 mm
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 0 mm
Assured switching distance "OFF" S22 mm
Mechanical data
- Actuating element
- Magnet
- Latching force
- 100 N
- Door weight, Hinged guard, maximal
- 5 kg
Door hingeLeft
Door weight, Sliding guard, maximal3 kg
Accessory
- Recommendation (actuator)
- BNS-B20-B01
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
