Schmersal 101107770 Magnetic Safety Sensor BNS 33-11Z, 88 mm x 25 mm x 13 mm, IP67, 20 Year Lifetime
Schmersal 101107770 Magnetic Safety Sensor BNS 33-11Z, 88 mm x 25 mm x 13 mm, IP67, 20 Year Lifetime
- MPN: 101107770
- PPN: SCM-101107770
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$130.85/ EA
Features
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
Specifications
Electrical data
- Switching voltage, maximum
- 100 VAC
- Switching current, maximum
- 0.4 A
- Switching frequency, maximum
- 5 Hz
Switching voltage, maximum100 VDC
Switching capacity, maximum10 W
Note
- Note (General)

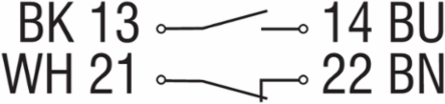

- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.

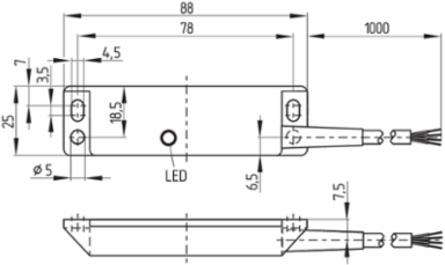

Mechanical data - Dimensions
- Length of sensor
- 13 mm
- Height of sensor
- 25 mm
Width of sensor88 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
Electrical data - Digital Output
- Design of control elements
- Miscellaneous, Reed contacts
General data - Features
- Prerequisite evaluation unit
- Yes
- Number of normally open (NO)
- 1
Number of normally closed (NC)1
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)not flush
Gross weight71 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.25 mm
- Material of the Cable mantle
- PVC
Length of cable1 m
Wire cross-section23 AWG

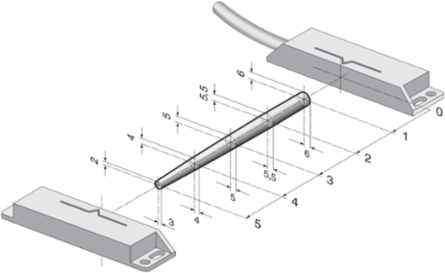

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 5 mm | 8 mm
Assured switching distance "OFF" S15 mm | 18 mm
Mechanical data
- Active area
- lateral
- Note (Repeat accuracy R)
- Wiederholgenauigkeit R ≤ 0,1 x S
Actuating elementMagnet
Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 33-2326 | BPS 33
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
