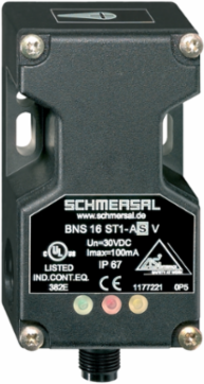

Schmersal 101177222 Safety Sensor BNS 16 ST1-AS D, 40 mm x 90 mm x 39 mm, IP67, AS-Interface
- MPN: 101177222
- PPN: SCM-101177222
CAD
$464.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Sensor BNS 16 ST1-AS D, 40 mm x 90 mm x 39 mm, IP67, AS-Interface
Features
- connector plug M12, bottom, 4-pole
- Safety sensor
- Thermoplastic enclosure
- no mechanical wear
- 40 mm x 90 mm x 39 mm
- Integrated AS-Interface
- Concealed mounting possible
- Long life
- Insensitive to transverse misalignment
- Insensitive to soiling
- AS-Interface LED and status display
Documentation & Downloads
Specifications
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-0.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Parameter bits, P0 ... P3
- No function
- AS-i Input module address
- 0
AS-i VersionV 2.1
AS-i, IO-Code0x0
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0 … DO 3No Function
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF) | FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

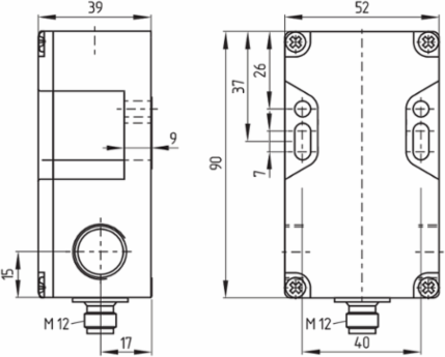

Mechanical data - Dimensions
- Length of sensor
- 38.5 mm
- Height of sensor
- 90 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Coding
- Yes
Integral system diagnostics, statusYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Installation conditions (mechanical)
- quasi-flush
- Gross weight
- 133 g
Working principleMagnetic drive
Enclosure materialGlass-fibre, reinforced thermoplastic
Reaction time, maximum100 ms
Safety classification
- Standards
- EN IEC 61508
- Category
- 4
- Note (PFH-value)
- up to max. 500,000 switching cycles/year
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value7.42 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum50 mA
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- II
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Connector positionBottom

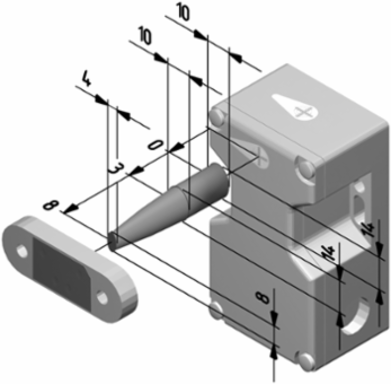

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 8 mm
Assured switching distance "OFF" S18 mm
Mechanical data
- Active area
- cover-side
- Note (Repeat accuracy R)
- Wiederholgenauigkeit R ≤ 0,1 x S
Actuating elementMagnet

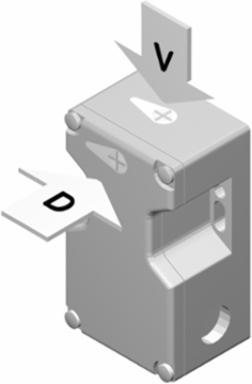

Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 16
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Status indication
- Note (LED switching conditions display)
- (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 | (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected | (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
