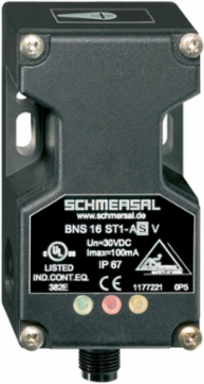

Schmersal 101177221 BNS 16 ST1-AS V Safety Sensor, 40 mm x 90 mm x 39 mm, IP67, Thermoplastic Enclosure

MPN: 101177221
PPN: SCM-101177221

$482.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

BNS 16 ST1-AS V Safety Sensor, 40 mm x 90 mm x 39 mm, IP67, Thermoplastic Enclosure

Features

connector plug M12, bottom, 4-pole
Safety sensor
Thermoplastic enclosure
no mechanical wear
40 mm x 90 mm x 39 mm
Integrated AS-Interface
Concealed mounting possible
Long life
Insensitive to transverse misalignment
Insensitive to soiling
AS-Interface LED and status display

Documentation & Downloads

Specifications

Electrical data - AS-Interface specification

AS-i Specification	Safety-Slave
AS-i Profile	S-0.B.F.E
AS-i, ID-Code	0xB
AS-i, ID-Code2	0xE
AS-i Input, Channel 2	Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Parameter bits, P0 ... P3	No function
AS-i Input module address	0

AS-i Version	V 2.1
AS-i, IO-Code	0x0
AS-i, ID-Code1	0xF
AS-i Input, Channel 1	Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0 … DO 3	No Function
Note (AS-i Parameter bits)	Set the parameter outputs to "1111" (0xF) \| FID: periphery error
Note (AS-i Input module address)	Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

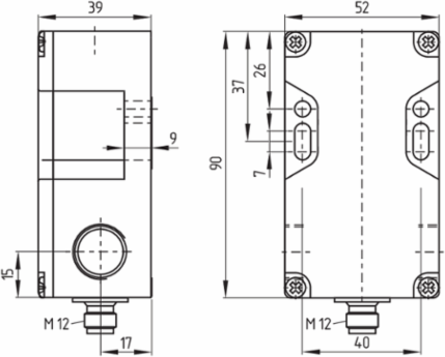

Mechanical data - Dimensions

Length of sensor	38.5 mm
Height of sensor	90 mm

Width of sensor	40 mm

Pin assignment

PIN 1	AS-i +
PIN 3	AS-Interface -

PIN 2	n.c.
PIN 4	n.c.

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

General data - Features

Coding	Yes

Integral system diagnostics, status	Yes

General data

Standards	EN IEC 62026-2 \| EN ISO 13849-1 \| EN IEC 60947-5-3 \| EN IEC 61508
Installation conditions (mechanical)	quasi-flush
Gross weight	138 g

Working principle	Magnetic drive
Enclosure material	Glass-fibre, reinforced thermoplastic
Reaction time, maximum	100 ms

Safety classification

Standards	EN IEC 61508
Category	4
Note (PFH-value)	up to max. 500,000 switching cycles/year
Mission time	20 Year(s)

Performance Level, up to	e
PFH value	7.42 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Electrical data - AS Interface

Rated operating voltage	18 ... 31.6 VDC (Protection against polarity reversal)

AS-i Current consumption, maximum	50 mA

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	-25 °C
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Protection class	II

Ambient temperature	-25 ... +60 °C
Storage and transport temperature, maximum	+70 °C
Restistance to shock	30 g / 11 ms

Mechanical data - Connection technique

Termination	Connector plug M12, 4-pole, (A-coding)

Connector position	Bottom

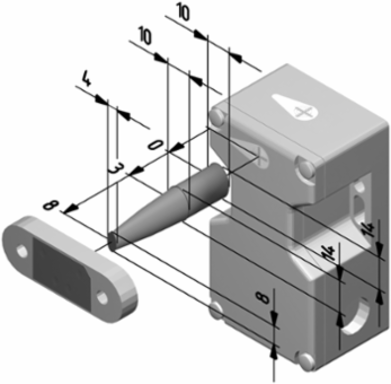

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S	8 mm

Assured switching distance "OFF" S	18 mm

Mechanical data

Active area	front side
Note (Repeat accuracy R)	Wiederholgenauigkeit R ≤ 0,1 x S

Actuating element	Magnet

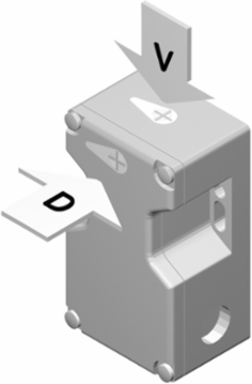

Direction of motion	Head-on to the active surface

Accessory

Recommendation (actuator)	BPS 16

Approvals - Standards

Certificates	TÜV \| cULus \| ASi-SaW

Status indication

Note (LED switching conditions display)	(1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 \| (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected \| (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
