Schmersal 101121966 Magnetic Safety Sensor BNS 303 with 3m Cable, M30, IP67, 130g
- MPN: 101121966
- PPN: SCM-101121966
CAD
$211.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

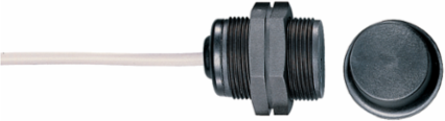

Magnetic Safety Sensor BNS 303 with 3m Cable, M30, IP67, 130g
Features
- Thermoplastic enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303 SS
- no mechanical wear
- Ø M30
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
- Switching current, maximum
- 0.4 A
- Switching frequency, maximum
- 5 Hz
Switching capacity, maximum10 W
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.

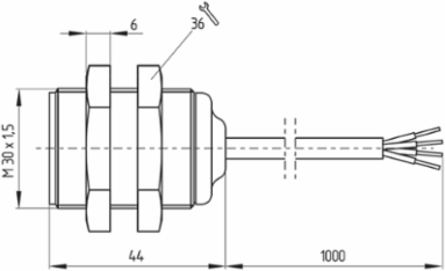

Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 44 mm
width across flats36 BK
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Scope of delivery of mounting material2x Mounting material M30 x 1.5 nuts
Electrical data - Digital Output
- Design of control elements
- Miscellaneous, Reed contacts
General data - Features
- Number of normally closed (NC)
- 1
- Number of safety contacts
- 2
Number of normally open (NO)1
Number of cable wires4
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 130 g
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Material of the nutsThermoplastic
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Length of cable
- 3 m
- Wire cross-section
- 23 AWG
Wire cross-section0.25 mm
Material of the Cable mantlePVC

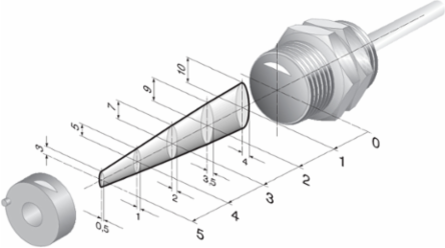

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 5 mm
Assured switching distance "OFF" S15 mm
Mechanical data
- Actuating element
- Magnet
Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
Recommended safety switchgearSRB 301AN
Approvals - Standards
- Certificates
- TÜV | BG | cULus
