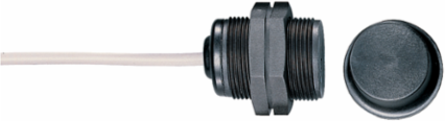

Schmersal 101127760 Magnetic Safety Sensor BNS 303-11Z with 10 m Cable Length, IP67 Protection
- MPN: 101127760
- PPN: SCM-101127760
CAD
$280.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Magnetic Safety Sensor BNS 303-11Z with 10 m Cable Length, IP67 Protection
Features
- Thermoplastic enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303 SS
- no mechanical wear
- Ø M30
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 100 VAC |
|---|---|
| Switching current, maximum | 0.4 A |
| Switching frequency, maximum | 5 Hz |
| Switching voltage, maximum | 100 VDC |
|---|---|
| Switching capacity, maximum | 10 W |
Note

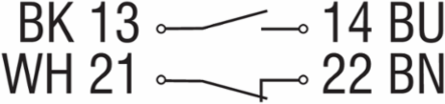

| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. |
|---|

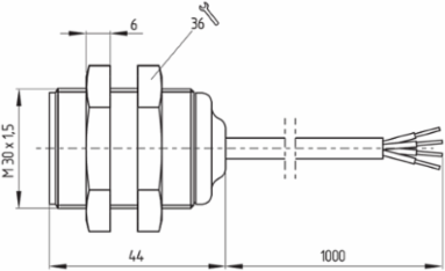

Mechanical data - Dimensions
| ISO thread of the sensor | M30 |
|---|---|
| Length of sensor | 44 mm |
| width across flats | 36 BK |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
| Scope of delivery of mounting material | 2x Mounting material M30 x 1.5 nuts |
|---|
Safety classification - Safety outputs
| B | 25,000,000 Operations |
|---|
Electrical data - Digital Output
| Design of control elements | Miscellaneous, Reed contacts |
|---|
General data - Features
| Number of normally closed (NC) | 1 |
|---|---|
| Number of safety contacts | 2 |
| Number of normally open (NO) | 1 |
|---|---|
| Number of cable wires | 4 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 380 g |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | quasi-flush |
| Material of the nuts | Thermoplastic |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Wire cross-section | 0.25 mm |
| Material of the Cable mantle | PVC |
| Length of cable | 10 m |
|---|---|
| Wire cross-section | 23 AWG |

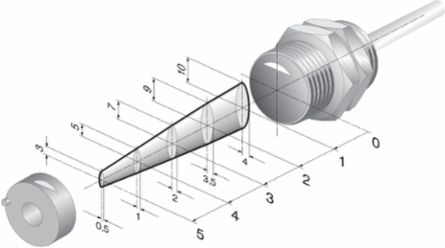

Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 5 mm |
|---|
| Assured switching distance "OFF" S | 15 mm |
|---|
Mechanical data
| Actuating element | Magnet |
|---|---|
| Tightening torque of nuts, maximum | 3 Nm |
| Direction of motion | Head-on to the active surface |
|---|
Accessory
| Recommendation (actuator) | BPS 300 | BPS 303 | BPS 303 SS |
|---|
| Recommended safety switchgear | SRB 301AN | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | BG | cULus |
|---|
