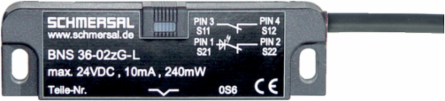

Schmersal 101193201 Magnetic Safety Sensor BNS 36-02/01Z-L, 88 mm x 25 mm x 13 mm, IP67
- MPN: 101193201
- PPN: SCM-101193201
CAD
$175.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 36-02/01Z-L, 88 mm x 25 mm x 13 mm, IP67
Features
- Thermoplastic enclosure
- Long life
- no mechanical wear
- 88 mm x 25 mm x 13 mm
- Concealed mounting possible
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 75 VDC
- Switching capacity, maximum
- 10 W
Switching current, maximum0.4 A
Switching frequency, maximum5 Hz
Note
- Note (General)

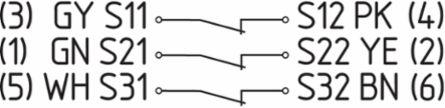

- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.

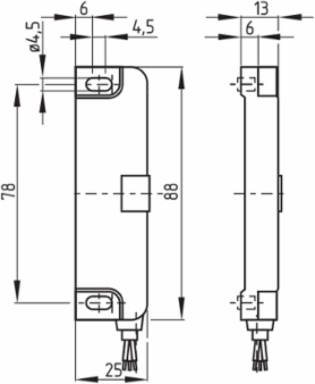

Mechanical data - Dimensions
- Length of sensor
- 13 mm
- Height of sensor
- 25 mm
Width of sensor88 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 3
- Number of cable wires
- 6
Number of safety contacts2
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight70 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.25 mm
- Material of the Cable mantle
- PVC
Length of cable1 m
Wire cross-section23 AWG

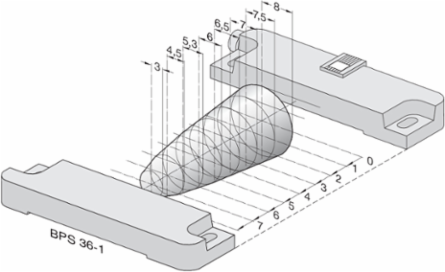

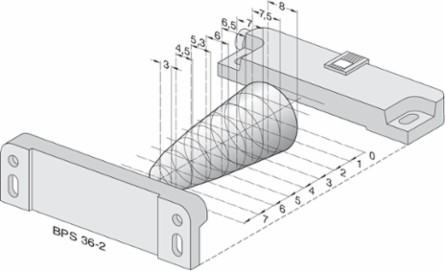

Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
- Assured switching distance "OFF" S
- 17 mm
Assured switching distance "ON" S7 mm
Mechanical data
- Actuating element
- Magnet
- Direction of motion
- Head-on to the active surface
Door hingeLeft
Accessory
- Recommendation (actuator)
- BPS 36-2
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
