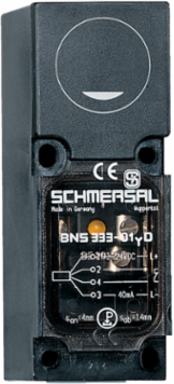

Schmersal 101169803 Magnetic Safety Sensor BNS 333-01YV-M20 39 mm x 52 mm x 90 mm, IP65
- MPN: 101169803
- PPN: SCM-101169803
CAD
$441.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 333-01YV-M20 39 mm x 52 mm x 90 mm, IP65
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303
- no mechanical wear
- 40 mm x 112 mm x 40 mm
- Insensitive to transverse misalignment
- Insensitive to soiling
- Wiring compartment
- With integral evaluation
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 250 VAC
- Switching capacity, maximum
- 1,250 W
- Switching frequency, maximum
- 5 Hz
Switching current, maximum5 A
Time to readiness, maximum50 ms
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device.

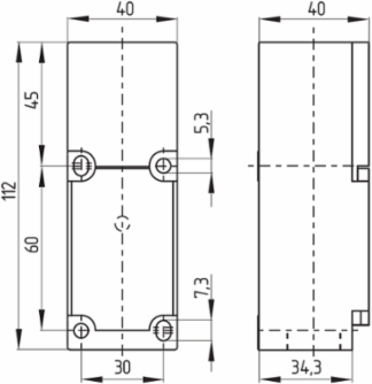

Mechanical data - Dimensions
- Length of sensor
- 39 mm
- Height of sensor
- 90 mm
Width of sensor52 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Integral system diagnostics, status
- Yes
- Number of normally closed (NC)
- 1
Safety monitoring module integratedYes
Number of safety contacts1
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Duration of risk, maximum
- 50 ms
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight145 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2 x 1.5 mm²
- Wire cross-section
- 15 AWG
Cable section, minimum2 x 0.75 mm²
Note (Cable section)All indications including the conductor ferrules.

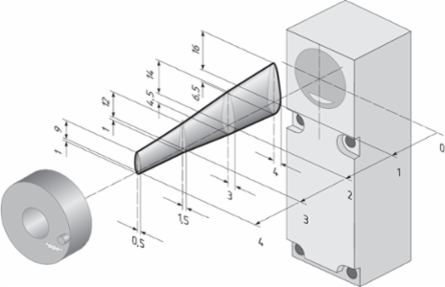

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 4 mm
Assured switching distance "OFF" S14 mm

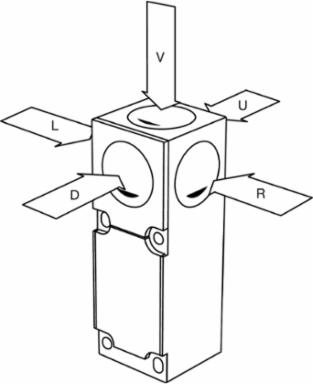

Mechanical data
- Active area
- front side
- Direction of motion
- Head-on to the active surface
Actuating elementMagnet
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
