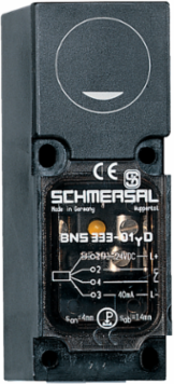

Schmersal 101169806 Magnetic Safety Sensor BNS 333-01YD-M20, 90 mm Height, IP65 Protection
- MPN: 101169806
- PPN: SCM-101169806
CAD
$458.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 333-01YD-M20, 90 mm Height, IP65 Protection
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303
- no mechanical wear

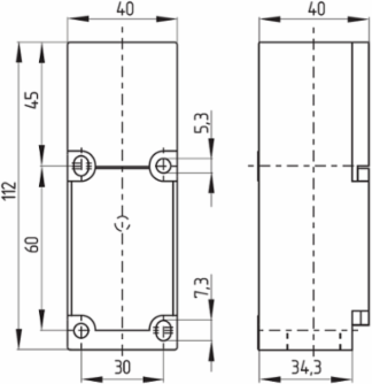

- 40 mm x 112 mm x 40 mm
- Insensitive to transverse misalignment
- Insensitive to soiling
- Wiring compartment
- With integral evaluation
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 250 VAC |
|---|---|
| Switching capacity, maximum | 1,250 W |
| Switching frequency, maximum | 5 Hz |
| Switching current, maximum | 5 A |
|---|---|
| Time to readiness, maximum | 50 ms |
Note
| Note (General) | Contact symbols shown for the closed condition of the guard device. |
|---|
Mechanical data - Dimensions
| Length of sensor | 39 mm |
|---|---|
| Height of sensor | 90 mm |
| Width of sensor | 52 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|
General data - Features
| Integral system diagnostics, status | Yes |
|---|---|
| Number of normally closed (NC) | 1 |
| Safety monitoring module integrated | Yes |
|---|---|
| Number of safety contacts | 1 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Duration of risk, maximum | 50 ms |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | quasi-flush |
| Gross weight | 150 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +55 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2 x 1.5 mm² |
| Wire cross-section | 15 AWG |
| Cable section, minimum | 2 x 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |

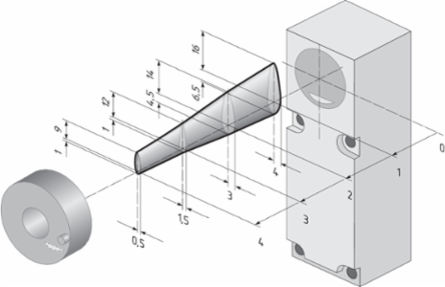

Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 4 mm |
|---|
| Assured switching distance "OFF" S | 14 mm |
|---|

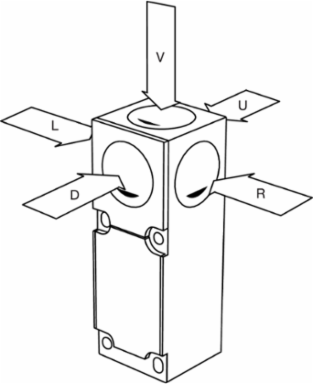

Mechanical data
| Active area | cover-side |
|---|---|
| Direction of motion | Head-on to the active surface |
| Actuating element | Magnet |
|---|
Accessory
| Recommendation (actuator) | BPS 300 | BPS 303 | BPS 303 SS |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Status indication
| Note (Integral System Diagnostics, status ) | The LED is illuminated when the guard is closed. |
|---|
