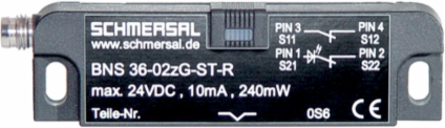

Schmersal 101190024 Magnetic Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, 30 VDC
- MPN: 101190024
- PPN: SCM-101190024
CAD
$212.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Magnetic Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, 30 VDC
Features
- Connector 8 mm, 6-pole, Latching interlocking
- Thermoplastic enclosure
- Long life
- no mechanical wear

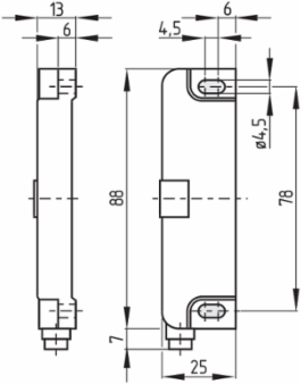

- 88 mm x 25 mm x 13 mm
- Concealed mounting possible
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 30 VDC
- Switching capacity, maximum
- 10 W
Switching current, maximum0.4 A
Switching frequency, maximum5 Hz
Note
- Note (General)

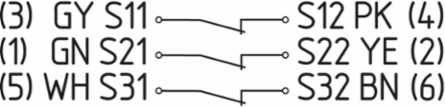

- The number in brackets indicate the PIN number of the connector.
Mechanical data - Dimensions
- Length of sensor
- 13 mm
- Height of sensor
- 25 mm
Width of sensor88 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 3
Number of safety contacts2
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight28 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination

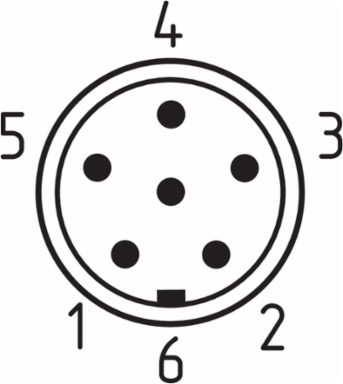

- Connector 8 mm, 6-pole, Latching interlocking
Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.

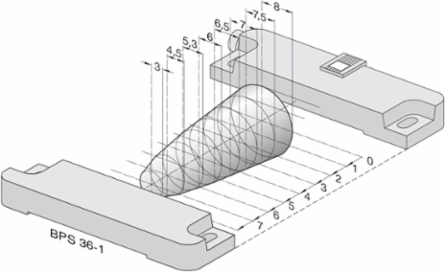

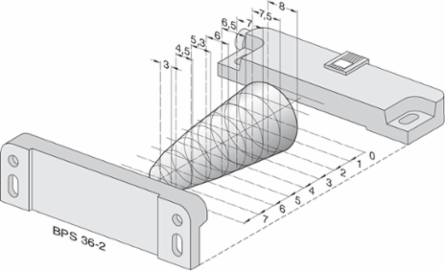

- Assured switching distance "OFF" S
- 17 mm
Assured switching distance "ON" S7 mm
Mechanical data
- Actuating element
- Magnet
- Direction of motion
- Head-on to the active surface
Door hingeRight
Accessory
- Recommendation (actuator)
- BPS 36-2
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
