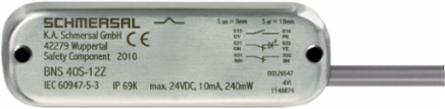

Schmersal 103000652 Magnetic Safety Sensor BNS 40S-12Z, 10 m Length, Stainless Steel Enclosure
- MPN: 103000652
- PPN: SCM-103000652
CAD
$482.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 40S-12Z, 10 m Length, Stainless Steel Enclosure
Features
- Stainless steel enclosure
- Cable connection suitable for the food industry
- Concealed mounting possible
- 88 mm x 27 mm x 14,5 mm
- Long life
- no mechanical wear
- Insensitive to soiling
- Insensitive to transverse misalignment
- Suitable for food processing industry
Documentation & Downloads
Specifications
Electrical data
| Switching current, maximum | 0.25 A |
|---|---|
| Switching frequency, maximum | 5 Hz |
| Switching capacity, maximum | 3 W |
|---|
Note
| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. |
|---|
Mechanical data - Dimensions
| Length of sensor | 14.5 mm |
|---|---|
| Height of sensor | 27 mm |
| Width of sensor | 88 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Electrical data - Digital Output
| Design of control elements | Miscellaneous, Reed contacts |
|---|
General data - Features
| Concealed, threaded holes on the back | No |
|---|---|
| Number of normally closed (NC) | 2 |
| Number of cable wires | 6 |
| Prerequisite evaluation unit | Yes |
|---|---|
| Number of normally open (NO) | 1 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Stainless steel (V4A) |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | not flush |
| Gross weight | 665 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|

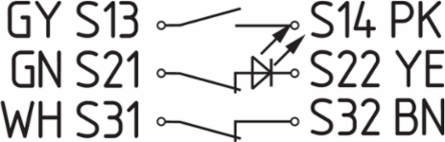

Wiring example
| Note (Wiring diagram) | Contact S21-S22 must be integrated in the safety circuit. |
|---|
Ambient conditions
| Degree of protection | IP69 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +80 °C |
|---|---|
| Storage and transport temperature, maximum | +80 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Wire cross-section | 0.25 mm |
| Material of the Cable mantle | LiYY |
| Length of cable | 10 m |
|---|---|
| Wire cross-section | 23 AWG |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 8 mm |
|---|
| Assured switching distance "OFF" S | 18 mm |
|---|
Mechanical data
| Actuating element | Magnet |
|---|
| Direction of motion | Head-on to the active surface |
|---|
Accessory
| Recommendation (actuator) | BPS 40S-2 | BPS 40S-1-C | BPS 40S-2-C |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | BG | cULus | ECOLAB |
|---|
