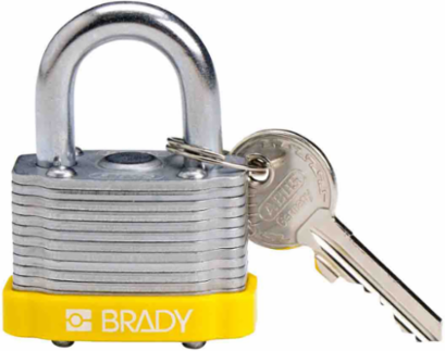

Brady 143132 Key Retaining Steel Padlock - 5-Pin Cylinder, 1.7" W x 1.1" H, 0.75" Shackle Clearance
- MPN: 143132
- UPC: 754473208042
- PPN: BRD-143132
- UNSPSC: 46171501
CAD
$23.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Key retaining padlocks prevent the key from being removed until the padlock is fully closed.
Features
- Reinforced laminated steel withstands sever physical abuse while hardened steel shackle resists tampering
- Body plates individually coated for superior rust protection
- 5-pin cylinder offers more unique key cuts for better tamper resistance
- Made from recycled material
Documentation & Downloads
Specifications
Key Specifications
| Applications | Lockout Tagout |
|---|---|
| Brand Name | Brady® |
| Enables Industry Compliance | OSHA 1910.147 |
| Key Mechanism | Standard Pin Tumbler |
| Key-Retaining | Yes |
| Maximum Number of Different Keycodes | 15000 |
| Number of Labels Included | 0 |
| Primary Noun, Basic Function | Padlock |
| Shackle Type | Open Shackle |
| Material Properties | Corrosion-resistant; Heavy-duty; Rust Protection |
| SAP B-Number | LOTO-11 |
| Body Depth (in/ft/yd) | 1 in |
| Body Height (in/ft/yd) | 1.1 in |
| Body Size (in/ft/yd) | 1.1 in H x 1.7 in W x 1 in D |
| Body Width (in/ft/yd) | 1.7 in |
| Maximum Service Temperature °C | 98.9 °C |
| Minimum Service Temperature °C | -56.7 °C |
| Shackle Diameter | 0.25 in |
| Shackle Vertical Clearance | 0.75 in |
| Body Coating/Finish | Individually Coated Laminates |
|---|---|
| Color | Yellow |
| Includes | (1) Key; (1) Padlock |
| Key Option | Keyed Different |
| Manufacturer Name | Brady® |
| Number of Keys Included | 1 |
| Number of Pin Tumblers | 5 |
| Shackle Coating/Finish | Triple-Coated, Hardened |
| Brady Material Number | LOTO-11 |
| Padlock Body Material | Steel |
| Shackle Material | Steel |
| Body Depth (mm/cm/m) | 25.4 mm |
| Body Height (mm/cm/m) | 27.9 mm |
| Body Size (mm/cm/m) | 27.9 mm H x 43.2 mm W x 25.4 mm D |
| Body Width (mm/cm/m) | 43.2 mm |
| Maximum Service Temperature °F | 210 °F |
| Minimum Service Temperature °F | -70 °F |
| Shackle Horizontal Clearance | 0.8 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| Contains 3TG Mineral | No-Does Not Contain |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
