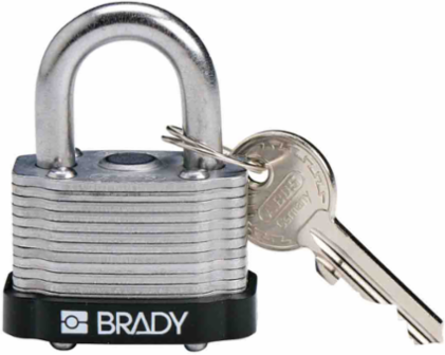

Brady 143136 Key Retaining Steel Padlock, 1.1 Inch H x 1.7 Inch W x 1 Inch D, 0.75 Inch Shackle Clearance
- MPN: 143136
- UPC: 754473208080
- PPN: BRD-143136
- UNSPSC: 46171501
CAD
$23.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Key retaining padlocks prevent the key from being removed until the padlock is fully closed.
Features
- Reinforced laminated steel withstands sever physical abuse while hardened steel shackle resists tampering
- Body plates individually coated for superior rust protection
- 5-pin cylinder offers more unique key cuts for better tamper resistance
- Made from recycled material
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Lockout Tagout
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Key Mechanism
- Standard Pin Tumbler
- Key-Retaining
- Yes
- Maximum Number of Different Keycodes
- 15000
- Number of Labels Included
- 0
- Padlock Body Type
- Standard
- Shackle Coating/Finish
- Triple-Coated, Hardened
- Brady Material Number
- LOTO-11
- Padlock Body Material
- Steel
- Shackle Material
- Steel
- Body Depth (mm/cm/m)
- 25.4 mm
- Body Height (mm/cm/m)
- 27.9 mm
- Body Size (mm/cm/m)
- 27.9 mm H x 43.2 mm W x 25.4 mm D
- Body Width (mm/cm/m)
- 43.2 mm
- Maximum Service Temperature °F
- 210 °F
- Minimum Service Temperature °F
- -70 °F
- Shackle Horizontal Clearance
- 0.8 in
Body Coating/FinishIndividually Coated Laminates
ColorBlack
Includes(1) Key; (1) Padlock
Key OptionKeyed Different
Manufacturer NameBrady®
Number of Keys Included1
Number of Pin Tumblers5
Primary Noun, Basic FunctionPadlock
Shackle TypeOpen Shackle
Material PropertiesCorrosion-resistant; Heavy-duty; Rust Protection
SAP B-NumberLOTO-11
Body Depth (in/ft/yd)1 in
Body Height (in/ft/yd)1.1 in
Body Size (in/ft/yd)1.1 in H x 1.7 in W x 1 in D
Body Width (in/ft/yd)1.7 in
Maximum Service Temperature °C98.9 °C
Minimum Service Temperature °C-56.7 °C
Shackle Diameter0.25 in
Shackle Vertical Clearance0.75 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer and Reproductive Harm ChemicalLead
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
