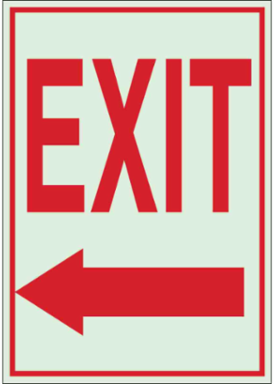

Brady 80220 BradyGlo Exit Sign, Red on Glow, 14 Inch H x 10 Inch W, Left Arrow Direction
Brady 80220 BradyGlo Exit Sign, Red on Glow, 14 Inch H x 10 Inch W, Left Arrow Direction
- MPN: 80220
- UPC: 754473802202
- PPN: BRD-80220
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$58.59/ EA
Description
B-324 BradyGlo™ material is a glow-in-the-dark (photoluminescent) pressure sensitive polyester.
Features
- B-324 is ideal for exit and directional signs, identification of fire alarms and extinguishers
- Photoluminescent material charges in 5 minutes at 1000 Lux for 10+ hours of glow time
- Consistent glow life and unlimited rechargability
- Service temperature of -40 to 176° F
Specifications
Specifications
- Arrow Direction
- Left
- Calculated Sign Shape
- Vertical Rectangle
- Compatible Surface Types
- High Surface Energy
- Image or Text
- Image & Text
- Meets Industry Standards - Signs
- ASTM D 523
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Class II
- Shape
- Rectangle
- Trade Name
- BradyGlo™
- Brady Material Number
- B-324
- Label Properties
- Glow in the Dark Labels
- Material Properties
- Explosion-safe; Photoluminescent
- SAP B-Number
- B-324
- Depth (mm/cm/m)
- 0.2 mm
- Dimensions (Metric)
- 35.56 cm H x 0.2 mm D
- Height (in/ft/yd)
- 14 in
- Maximum Service Temperature °C
- 80 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 14 in H x 10 in W x 0.008 in D
- Thickness (in/ft/yd)
- 0.0079 in
- Width (in/ft/yd)
- 10 in
Brand NameBrady®
ColorRed on Glow
Enables Industry ComplianceASTM D 523; ASTM E 162; ASTM E 2072-00; ASTM E 2073-00; ASTM E 648; ASTM E 662; DIN 67510; IMO Resolution A.752(18); ISO/CD 15370; Lloyd's Register SAS F050294.p; OSHA 29 CFR 1910.37
LanguageEnglish
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendEXIT
Adhesive TypePermanent Acrylic
IlluminationGlow in the Dark
MaterialPhotoluminescent Polyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.008 in
Dimensions14 in H x 10 in W x 0.008 in D
Dimensions 214 in H x 10 in W
Height (mm/cm/m)35.56 cm
Maximum Service Temperature °F176 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General14 in x 10 in
Thickness (mm/cm/m)0.201 mm
Width (mm/cm/m)25.4 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
