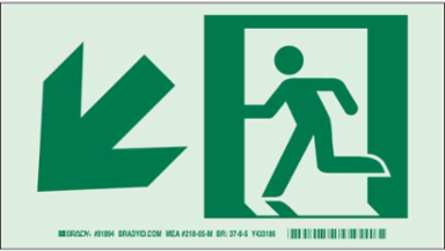

Brady 81894 BradyGlo Exit Sign with Running Man, 5 Inch H x 9 Inch W, Photoluminescent Polyester
Brady 81894 BradyGlo Exit Sign with Running Man, 5 Inch H x 9 Inch W, Photoluminescent Polyester
- MPN: 81894
- UPC: 754473818944
- PPN: BRD-81894
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.74/ EA
Description
BradyGlo™ High Intensity Polyester (B-523) provides high adhesion and luminance for egress marking in low light areas in and along stairwells of public buildings.
Features
- Non-toxic, non-radioactive, explosion-safe material features an aggressive pressure-sensitive synthetic rubber adhesive
- Complies with RS 6-1 and 6-1A of New York Local Law 26 including photoluminescence, washability, flammability, toxic gas generation and radioactivity
- Approved Model Numbers Accepted For Use, City of New York, Department of Buildings: MEA No. 218-05-M Vol. 3 BR: 41-9-6 UV
- Service temperature of -40°F to 176°F (-40°C to 80°C)
Specifications
Specifications
- Arrow Direction
- Diagonal Down/Left
- Calculated Sign Shape
- Horizontal Rectangle
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- Meets Industry Standards - Signs
- MEA Approved
- Number of Printed Sides
- 1
- Printer and Label Applications
- General Identification; Lean / 5S; Safety
- Reflective Type
- Non-Reflective
- Trade Name
- BradyGlo™
- Brady Material Number
- B-523
- Label Properties
- Permanent Adhesive Labels
- Material
- Phosphorescent Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.0096 in
- Dimensions
- 5 in H x 9 in W x 0.0096 in D
- Dimensions 2
- 5 in H x 9 in W
- Height (mm/cm/m)
- 127 mm
- Maximum Service Temperature °F
- 176 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 5 in x 9 in
- Thickness (mm/cm/m)
- 0.239 mm
- Width (mm/cm/m)
- 228.6 mm
Brand NameBrady®
ColorGreen on Glow
Enables Industry ComplianceMEA Approved; UL 1994; UL Listed for US
Image or TextImage Only
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
PSPA Photoluminescence ClassClass II
ShapeRectangle
Adhesive TypePermanent Synthetic Rubber
IlluminationGlow in the Dark
LaminatedLaminated
Material PropertiesExplosion-safe; Photoluminescent
SAP B-NumberB-523
Depth (mm/cm/m)0.24 mm
Dimensions (Metric)127 mm H x 0.24 mm D
Height (in/ft/yd)5 in
Maximum Service Temperature °C80 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size5 in H x 9 in W x 0.0096 in D
Thickness (in/ft/yd)0.0094 in
Width (in/ft/yd)9 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
