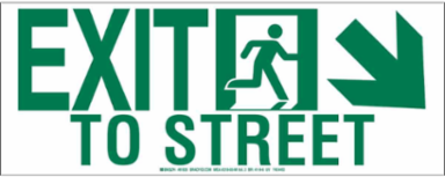

Brady 81835 BradyGlo NYC Approved Exit Sign, 7 Inch H x 18 Inch W, Glow in the Dark
- MPN: 81835
- UPC: 754473818357
- PPN: BRD-81835
- UNSPSC: 55121704
CAD
$331.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BradyGlo™ High Intensity Polyester (B-523) provides high adhesion and luminance for egress marking in low light areas in and along stairwells of public buildings.
Features
- Non-toxic, non-radioactive, explosion-safe material features an aggressive pressure-sensitive synthetic rubber adhesive
- Complies with RS 6-1 and 6-1A of New York Local Law 26 including photoluminescence, washability, flammability, toxic gas generation and radioactivity
- Approved Model Numbers Accepted For Use, City of New York, Department of Buildings: MEA No. 218-05-M Vol. 3 BR: 41-9-6 UV
- Service temperature of -40°F to 176°F (-40°C to 80°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Green on Glow
- Enables Industry Compliance
- MEA Approved; UL 1994; UL Listed for US
- Image or Text
- Image & Text
- Meets Industry Standards - Signs
- MEA Approved
- Number of Printed Sides
- 1
- Printer and Label Applications
- General Identification; Lean / 5S; Safety
- Reflective Type
- Non-Reflective
- Text Legend
- EXIT TO STREET
- Adhesive Type
- Permanent Synthetic Rubber
- Illumination
- Glow in the Dark
- Laminated
- Laminated
- Material Properties
- Explosion-safe; Photoluminescent
- SAP B-Number
- B-523
- Depth (mm/cm/m)
- 0.24 mm
- Dimensions (Metric)
- 177.8 mm H x 0.24 mm D
- Height (in/ft/yd)
- 7 in
- Maximum Service Temperature °C
- 80 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 7 in H x 18 in W x 0.0096 in D
- Thickness (in/ft/yd)
- 0.0094 in
- Width (in/ft/yd)
- 18 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesLow Surface Energy
FinishGloss
LanguageEnglish
Mounting TypeSelf-Adhesive
Primary Noun, Basic FunctionSign
PSPA Photoluminescence ClassClass II
ShapeRectangle
Trade NameBradyGlo™
Brady Material NumberB-523
Label PropertiesPermanent Adhesive Labels
MaterialPhosphorescent Polyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.0096 in
Dimensions7 in H x 18 in W x 0.0096 in D
Dimensions 27 in H x 18 in W
Height (mm/cm/m)177.8 mm
Maximum Service Temperature °F176 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General7 in x 18 in
Thickness (mm/cm/m)0.239 mm
Width (mm/cm/m)45.72 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
