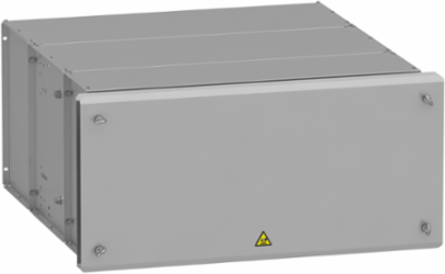

Schneider Electric VW3A7755 Braking Resistor Altivar 8 Ohm 25 kW IP23 540mm Width

Braking Resistor Altivar 8 Ohm 25 kW IP23 540mm Width
  • MPN: VW3A7755
  • PPN: SCH-VW3A7755

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Description

    This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 8Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 86kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

    Specifications

    Environment

    Ambient Air Temperature For Operation
    0-50 °C
    Ip Degree Of Protection
    IP23
    Ambient Air Temperature For Storage-25-70 °C

    Complementary

    Height
    1035 mm
    Protection Type
    thermal protection via drive or temperature control switch 120 °C
    Width
    540 mm
    Average Power Available
    25 kW 50 °C
    Electrical Connection
    terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive
    Product Compatibilityvariable speed drive ATV930 wall mount 55 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 15 kW 200...240 V severe cycle || variable speed drive ATV950 wall mount 55 kW 380...480 V severe cycle || variable speed drive ATV340 45 kW 380...480 V severe cycle || variable speed drive ATV930 75 kW 500...690 V severe cycle || variable speed drive ATV930 90 kW 500...690 V severe cycle || variable speed drive ATV930 100 hp 600 V severe cycle
    Duty Cyclesevere cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
    Depth1060 mm
    Net Weight87.5 kg

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Specifications

    Ohmic Value
    8 Ohm
    Range Compatibility
    Altivar Process ATV900 || Altivar Machine ATV340
    [Ue] Rated Operational Voltage24 V DC || 250 V AC
