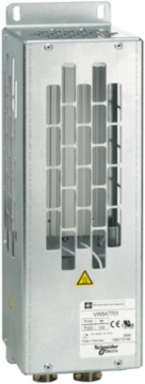

Schneider Electric VW3A7701 Altivar Braking Resistor, 100 Ohm, 50W, IP20, 1.9 kg
- MPN: VW3A7701
- PPN: SCH-VW3A7701
CAD
$287.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 1.9kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, Germany, France, United States
Depth95 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Average Power Available
- 50 W 50 °C, 58 W 40 °C
- [Ue] Rated Operational Voltage
- 24 V DC 0.1 A, 250 V AC 1 A
- Local Publishable Date
- 2026-01-12
- Future Imap
- 558.9
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1851
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Contact Resistance
- 60 µOhm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Altivar
- Sustainable Packaging
- No
- Width Nominal
- 95 mm
- Package Weight(Lbs)
- 1.957 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionterminal <= 1.5 mm² / AWG 16 temperature control switch, terminal <= 4 mm² / AWG 28 drive
Local Data StatusPublishable
Return IndicatorY
Future Msrp621.00
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ohmic Value100 Ohm
Protection Typethermal protection via drive or temperature control switch 120 °C
ReturnabilityYes
Height Nominal293 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Product CompatibilityATV31C018M2, ATV31C037M2, ATV31C037N4, ATV31C055M2, ATV31C055N4, ATV31C075M2, ATV31C075N4, ATV31CU11M2, ATV31CU11N4, ATV31CU15M2, ATV31CU15N4, ATV31CU22N4, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 2.2 kW, ATV31CU30N4, ATV31CU40N4, variable speed drive ATV310 3 kW, variable speed drive ATV310 4 kW, ATV12H018F1, ATV12H018M2, ATV12H018M3, ATV12H037F1, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075F1, ATV12H075M2, ATV12H075M3, ATV12HU15M2, ATV12HU15M3, ATV12P037F1, ATV12P037M2, ATV12P037M3, ATV12P055M2, ATV12P075M2, ATV12P075M3, ATV12PU15M3, ATV312H018M2, ATV312H018M3, ATV312H037M2, ATV312H037M3, ATV312H037N4, ATV312H055M2, ATV312H055M3, ATV312H055N4, ATV312H075M2, ATV312H075M3, ATV312H075N4, ATV312HU11M2, ATV312HU11M3, ATV312HU11N4, ATV312HU15M2, ATV312HU15M3, ATV312HU15N4, ATV312HU22N4, ATV312HU30N4, ATV312HU40N4, ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11M2, ATV32HU11N4, ATV32HU15M2, ATV32HU15N4, ATV32HU22N4, ATV32HU30N4, ATV32HU40N4, ATV61H075M3, ATV61H075N4, ATV61HU15N4, ATV61HU22N4, ATV61HU30N4, ATV61HU30Y, ATV61HU40N4, ATV61HU40Y, ATV61HU55Y, ATV61HU75Y, ATV61W075N4, ATV61W075N4C, ATV61WU15N4, ATV61WU15N4C, ATV61WU22N4, ATV61WU22N4C, ATV61WU30N4, ATV61WU30N4C, ATV61WU40N4, ATV61WU40N4C, ATV61WU55N4, ATV61WU55N4C, ATV71H037M3, ATV71H075M3, ATV71H075N4, ATV71HU15N4, ATV71HU22N4, ATV71HU22Y, ATV71HU30N4, ATV71HU30Y, ATV71HU40N4, ATV71HU40Y, ATV71HU55Y, ATV71P075N4Z, ATV71PU40N4Z, ATV71W075N4, ATV71WU40N4, ATV71PU15N4Z, ATV71PU22N4Z, ATV71WU15N4, ATV71WU22N4, ATV71PU30N4Z, ATV71WU30N4
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Range Of Product
- Altivar
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
