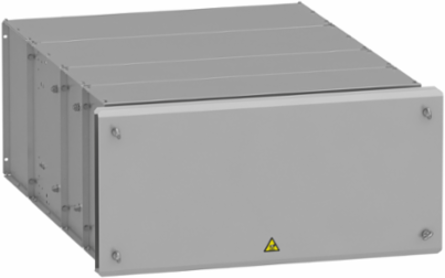

Schneider Electric VW3A7756 Braking Resistor, 5 Ohm, 32 kW, IP23, 126 kg, 1285 mm Height
- MPN: VW3A7756
- PPN: SCH-VW3A7756
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 5Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 126kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Documentation & Downloads
Specifications
Key Specifications
- Ohmic Value
- 5 Ohm
- Range Compatibility
- Altivar Machine ATV340 || Altivar Process ATV900
[Ue] Rated Operational Voltage24 V DC || 250 V AC
Product Or Component Typebraking resistor
Complementary
- Height
- 1285 mm
- Protection Type
- thermal protection via drive or temperature control switch 120 °C
- Width
- 540 mm
- Average Power Available
- 32 kW 50 °C
- Electrical Connection
- terminal <= 2.5 mm² / AWG 12 temperature control switch || M12 bar wire drive
Product Compatibilityvariable speed drive ATV930 wall mount 75 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 110 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 132 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 160 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 22 kW 200...240 V severe cycle || variable speed drive ATV930 wall mount 30 kW 200...240 V severe cycle || variable speed drive ATV930 wall mount 37 kW 200...240 V severe cycle || variable speed drive ATV930 wall mount 45 kW 200...240 V severe cycle || variable speed drive ATV950 wall mount 75 kW 380...480 V severe cycle || variable speed drive ATV340 55 kW 380...480 V severe cycle || variable speed drive ATV930 wall mount 220 kW 380...480 V medium cycle 3 per drive || variable speed drive ATV930 wall mount 250 kW 380...480 V medium cycle 3 per drive || variable speed drive ATV930 wall mount 310 kW 380...480 V medium cycle 4 per drive
Duty Cyclesevere cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle || severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 220 kW || severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 250 kW || severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 315 kW
Depth1060 mm
Net Weight126 kg
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP23
Ambient Air Temperature For Storage-25-70 °C
