Braking Resistor 5 Ohm 1.9 kW IP23 485 mm x 540 mm x 450 mm

Documentation & Downloads

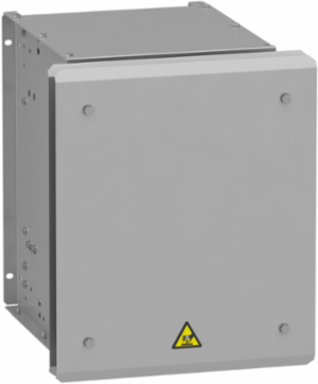

Schneider Electric VW3A7736 Braking Resistor 5 Ohm 1.9 kW IP23 485 mm x 540 mm x 450 mm

MPN: VW3A7736
PPN: SCH-VW3A7736

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$804.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

The Schneider Electric VW3A7736 Braking Resistor is engineered to enhance the performance of your drive systems with its robust 5 Ohm resistance and power handling capability of 1.9 kW. Designed with an IP23 rating, this braking resistor offers a degree of protection against solid objects and water, making it suitable for various industrial applications. Measuring 485 mm x 540 mm x 450 mm, its compact design allows for convenient installation while ensuring reliable operation, making it an essential component for efficient energy braking in your systems.

Documentation & Downloads

Specifications

Additional

Duty Cycle: light cycle (heavy duty) <0.8 s braking 150% torque; light cycle (normal duty) <0.8 s braking 120% torque; medium cycle (normal duty) <4 s braking 135% torque; medium cycle (heavy duty) <4 s braking 165% torque (all 40 s cycles)

Voltage Rating: 24 V DC, 250 V AC

Electrical Connection: terminal ≤ 2.5 mm² / AWG 12 with temperature control switch; M10 bar wire drive

Thermal Protection: 120 °C via drive or temperature control switch

Height: 485 mm (19.09 in)

Net Weight: 18 kg (39.68 lb)

Ambient Air Temperature for Storage: -25 to 70 °C (-13 to 158 °F)

RoHS Compliance: Yes

Mercury Free: Yes

Power Rating1.9 kW at 50 °C

Ohmic Value5 Ohm

Degree of ProtectionIP23

Width540 mm (21.26 in)

Depth450 mm (17.72 in)

Ambient Air Temperature for Operation0-50 °C (32-122 °F)

MaterialNot specified

Toxic Heavy Metal FreeYes

Country of OriginGermany
