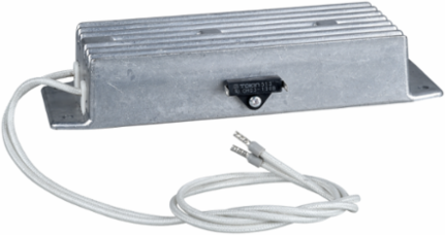

Schneider Electric VW3A7725 Altivar Braking Resistor 100 Ohm 200W IP00
- MPN: VW3A7725
- PPN: SCH-VW3A7725
CAD
$129.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. the power available is 35W at 50°c and 40W at 40°c. It weighs 0.850kg and its dimensions are, 62mm wide, 195mm high, 36mm deep.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Persona Type Ids | EU |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Ohmic Value | 100 Ohm |
| Range Of Product | Altivar |
| Sustainable Packaging | No |
| Package Weight(Lbs) | 1.724 kg |
| Warranty (In Months) | 18 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1935 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | End User |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Average Power Available | 200 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8533290000 |
Environment Attributes Main
| Product Compatibility | variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 4 kW, ATV312HU30N4, ATV312HU40N4, ATV312HU40S6variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 5.5 kW |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP00 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
