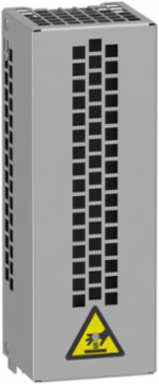

Braking Resistor 100 Ohm 0.1 kW IP20 105mm x 295mm x 100mm
Schneider Electric

Schneider Electric VW3A7730 Braking Resistor 100 Ohm 0.1 kW IP20 105mm x 295mm x 100mm

  • MPN: VW3A7730
  • PPN: SCH-VW3A7730
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $227.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, Spain, France, Sweden, United States
    Depth100 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, OM, OM8, SC, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Duty Cycle
    light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cyclelight cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1851
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Power Available
    0.1 kW 50 °C
    Ohmic Value
    100 Ohm
    Product Or Component Type
    braking resistor
    Range Of Product
    Altivar
    Sustainable Packaging
    No
    Width Nominal
    105 mm
    Package Weight(Lbs)
    1.714 kg
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Electrical Connectionterminal <= 10 mm² / 8 AWG drive
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protection Typethermal protection via drive
    ReturnabilityYes
    Height Nominal295 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8533290000

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Ambient Air Temperature For Operation
    0-50 °C
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Product Compatibilityvariable speed drive ATV950 wall mount 1.5 kW 380...480 V light cyclevariable speed drive ATV950 wall mount 2.2 kW 380...480 V light cyclevariable speed drive ATV950 wall mount 3 kW 380...480 V light cyclevariable speed drive ATV950 wall mount 4 kW 380...480 V light cyclevariable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cyclevariable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cyclevariable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cyclevariable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cyclevariable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V medium cyclevariable speed drive ATV320 0.37 kW 380...480 Vvariable speed drive ATV320 0.75 kW 380...480 Vvariable speed drive ATV320 1.5 kW 380...480 Vvariable speed drive ATV320 2.2 kW 380...480 Vvariable speed drive ATV320 3 kW 380...480 Vvariable speed drive ATV310 2.2 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 4 kWvariable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 3 hp 600 V medium cyclevariable speed drive ATV320 1.5 kW 525...600 Vvariable speed drive ATV320 2.2 kW 525...600 Vvariable speed drive ATV320 4 kW 525...600 Vvariable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kW, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 0.75 kW 380...480 V light cyclevariable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV310 1.5 kW, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cyclevariable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV310L 0.75 kW
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    braking resistor
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025
