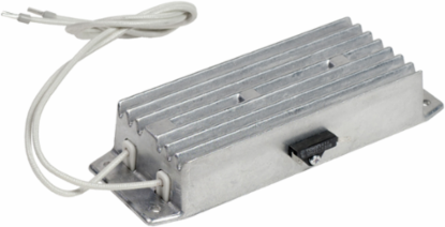

Schneider Electric VW3A7723 Altivar Braking Resistor 100 Ohm, 28W, 60mm x 170mm x 30mm, IP00

MPN: VW3A7723
PPN: SCH-VW3A7723
UNSPSC: 26112105

$130.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.

Features

For variable speed drives
Allow your drive to operate while braking to a standstill or during slowdown braking
Dissipates the braking energy
Enables maximum transient braking torque

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	30 mm

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Persona Type Ids	EU
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ohmic Value	100 Ohm
Range Of Product	Altivar
Sustainable Packaging	No
Width Nominal	60 mm
Customs Code	8533290000

Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1935
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	End User
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Average Power Available	28 W 50 °C32 W 40 °C
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Height Nominal	170 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Product Compatibility	variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV310 2.2 kW, ATV12H018M2, ATV12H018M3, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075M2, ATV12H075M3, ATV12HU15M2, ATV12HU15M3, ATV12P037M2, ATV12P037M3, ATV12P055M2, ATV12P075M2, ATV12P075M3, ATV12PU15M3, ATV312H018M2, ATV312H018M3, ATV312H037M2, ATV312H037M3, ATV312H037N4, ATV312H055M2, ATV312H055M3, ATV312H055N4, ATV312H075M2, ATV312H075M3, ATV312H075N4, ATV312HU11M2, ATV312HU11M3, ATV312HU11N4, ATV312HU15M2, ATV312HU15M3, ATV312HU15N4, ATV312HU22N4, ATV312H075S6, ATV312HU15S6, ATV312HU22S6variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kW
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
