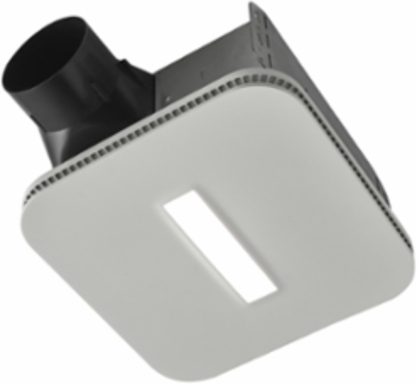

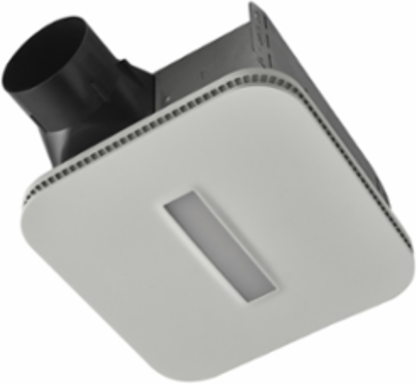

NuTone AE110LK Broan Flex™ Series 110 CFM 1.0 Sone Ventilation Fan Light with CleanCover™ Energy Star®
- MPN: AE110LK
- UPC: 026715263493
- PPN: BRO-AE110LK
CAD
$241.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Broan® Flex Series Ventilation fan with LED lighted CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
Features
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

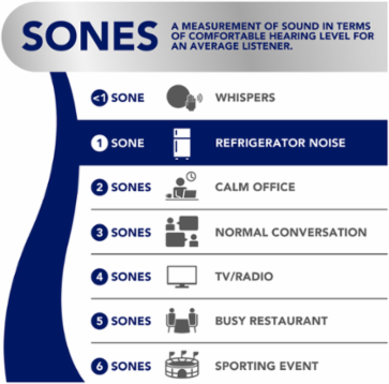

- 1.0 Sones for whisper quiet operation
- Broan® Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

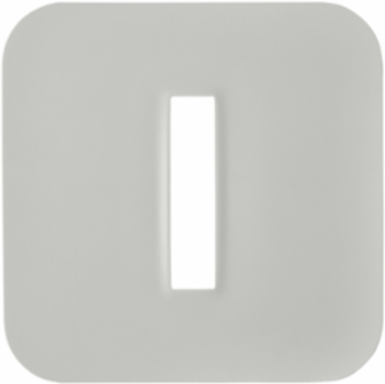

- CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
- Integrated LED module to provide energy efficient lighting
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR® certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- 3-year limited warranty
- 30% more airtight installed performance vs standard vent fans
- ENERGY STAR® efficiency reduces energy costs

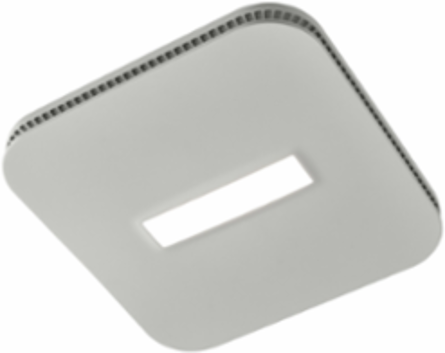

- LED lighted CleanCover™ grille stays cleaner longer
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Duct Diameter
- 4
- Length
- 12.25 in.
- Housing Height (In)
- 5.75
- Housing Width (In)
- 10
- Width
- 12.25 in.
- Contain Electronic Equipment
- Yes
- Contain Wood
- No
- Primary Color
- White
- Voltage
- 120
- Automatic Shut Off
- No
- Bulb (Recommended Type)
- Integrated LED Module
- Certification File No.
- E17814
- Color Temperature (Kelvin)
- 3500
- Decorative
- No
- Duct Shape
- Round
- Globe Material
- N/A
- Grille Shape
- Square
- Housing Material
- Galvanized
- Installation Type
- Ceiling;Wall
- Light Dimmable
- Yes
- Lighting Modules (Number Of)
- 1
- Lights Included
- Yes
- Minimum Construction Space Required
- 2" x 6"
- Multi-Speed
- No
- Product Switch Control Type
- Wall Control
- Recommended Room Size (Sq Ft)
- 105
- Room Side Installation Possible
- Yes
- Sones Max Rating
- N/A
- Type IC
- Yes
Height5.75 in.
Grille Height (In)1.125
Grille Width (In)12.25
Length9.25 in.
Weight9.3 lbs.
Contain Chemical/SolventNo
Contain MercuryNo
Manufacturer Warranty3 Years
SeriesBroan Flex™ Series
Amperage (Amps)0.3
Built In TimerNo
Ceiling OnlyNo
CFM (HVI)110
Damper IncludedNo
Duct DirectionHorizontal/Vertical
Frequency (Hz)60
Grille MaterialPlastic
Hardware IncludedYes
Humidity SensingNo
Light (Built In)Yes
LightedYes
Lighting TypeLED
Lumens/Light Source800
Motion SensingNo
NightlightNo
Radiation Damper AvailableNo
Retail PeggableNo
Selectable SpeedNo
Sones1
Wall Control IncludedNo
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- No
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantNo
Warnock Hersey CertificationNo
