NuTone AE80KF Broan Flex™ Series 80 CFM, 0.7 Sone Ventilation Fan Finish Pack with CleanCover Energy Star

MPN: AE80KF
UPC: 026715266210
PPN: BRO-AE80KF

$99.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

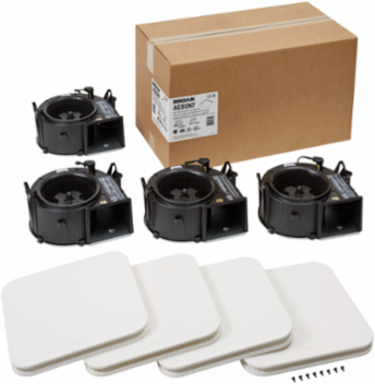

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any décor.

Features

80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

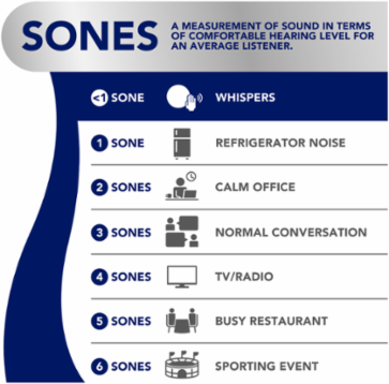

0.7 Sone for Ultra quiet performance, you might not notice it's on
TrueSeal™ Damper technology reduces air leakage up to 50%
EzDuct™ connector can be installed from the room side, with no attic access required
ENERGY STAR® Certified Product
UL Listed for use over tubs and showers with a GFCI circuit

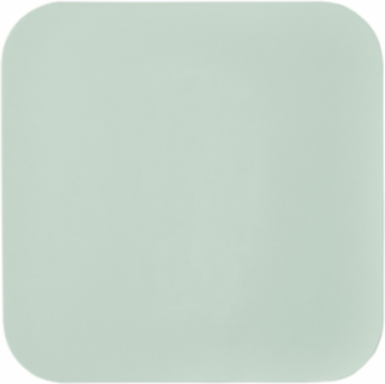

Bright-white, CleanCover grille easily blends into the ceiling and makes cleaning easier
Powerful enough for rooms up to 75 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Requires a Housing Pack purchase to complete installation. Suggested model is A000HFNF or A000HFKT.
Brighter white grilles blends to match most common ceiling paint
Easy to install and/or replace existing product for DIY'ers
Powerful enough for rooms (including bathroom) up to 75 sq. ft.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Ceiling Cutout Length (In)	10
Duct Diameter	4
Grille Width (In)	12.25
Length	10 in.
Width	9.25 in.
Contain Electronic Equipment	Yes
Contain Wood	No
Series	Broan® Flex Series
Air Flow Method	Centrifugal Blower
Automatic Shut Off	No
Ceiling Only	No
Damper Included	No
Duct Direction	Horizontal/Vertical
Frequency (Hz)	60
Grille Material	Plastic
Hardware Included	Yes
Humidity Sensing	No
Light (Built In)	No
Lighted	No
Minimum Construction Space Required	2" x 6"
Multi-Speed	No
Product Switch Control Type	Wall Control
Recommended Room Size (Sq Ft)	75
Room Side Installation Possible	Yes
Sones Max Rating	N/A
Type IC	Yes

Height	5.75 in.
Ceiling Cutout Width (In)	9.25
Length	12.25 in.
Housing Height (In)	5.75
Housing Width (In)	9.25
Contain Chemical/Solvent	No
Contain Mercury	No
Primary Color	White
Voltage	120
Amperage (Amps)	0.3
Built In Timer	No
CFM (HVI)	80
Decorative	No
Duct Shape	Round
Globe Material	N/A
Grille Shape	Square
Housing Material	Steel
Installation Type	Ceiling;Wall
Light Dimmable	No
Lights Included	No
Motion Sensing	No
Nightlight	No
Radiation Damper Available	Yes
Retail Peggable	No
Selectable Speed	No
Sones	0.7
Wall Control Included	No

Certifications

CE Certification	No
cUL Listed	Yes
HVI Certified	Yes
RoHS Certification	No
AMCA Certification	No
cETL Listed	No
ENERGY STAR Certified	Yes
IC Certification	No
UL Listed For Use Over Tub & Shower With GFCI	Yes

CSA Listed	No
ETL Listed	No
ISTA Rating	ISTA - 1A
UL Listed	Yes
BQB Certification	No
cULus Listed	Yes
FCC Certification	No
Title 24 Compliant	No
Warnock Hersey Certification	No
