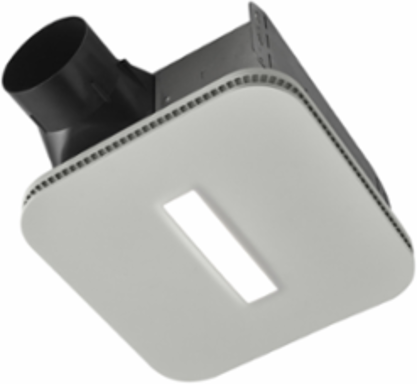

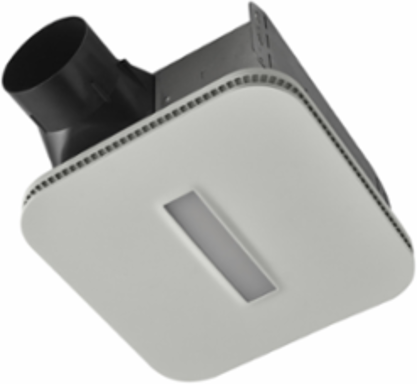

NuTone AE80LK Broan Flex™ Series 80 CFM 0.7 Sone Ventilation Fan Light with CleanCover™ Energy Star®
- MPN: AE80LK
- UPC: 026715260911
- PPN: BRO-AE80LK
CAD
$167.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Broan® Flex Series Ventilation fan with LED lighted CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
Features
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

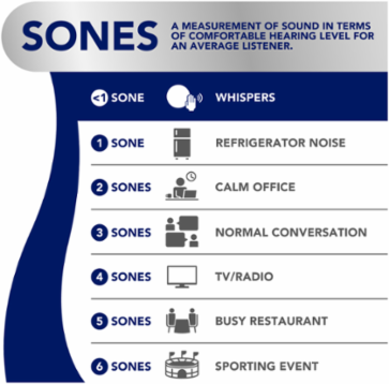

- 0.7 Sone for whisper quiet operation
- Broan® Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

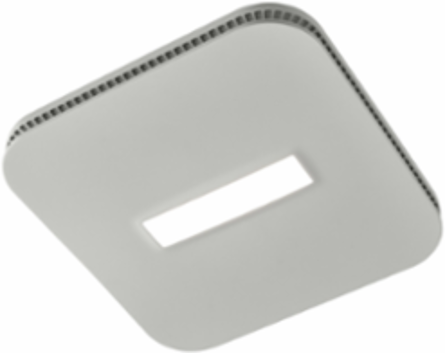

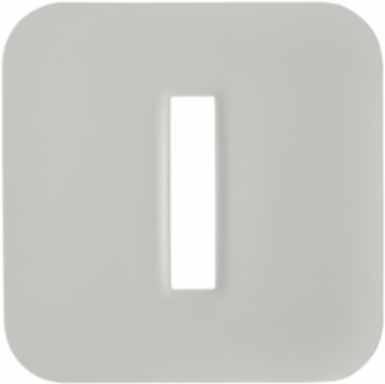

- CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
- Integrated LED module to provide energy efficient lighting
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal™ damper technology reduces air leakage up to 50%, the tightest seal against backdrafts
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR® certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- 3-year limited warranty
- 30% more airtight installed performance vs standard vent fans
- ENERGY STAR® efficiency reduces energy costs
- LED lighted CleanCover™ grille stays cleaner longer
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Duct Diameter
- 4
- Length
- 12.25 in.
- Housing Height (In)
- 5.75
- Housing Width (In)
- 10
- Width
- 12.25 in.
- Contain Electronic Equipment
- Yes
- Contain Wood
- No
- Series
- Broan Flex™ Series
- Amperage (Amps)
- 0.3
- Built In Timer
- No
- Ceiling Only
- No
- CFM (HVI)
- 80
- Damper Included
- No
- Duct Direction
- Horizontal/Vertical
- Frequency (Hz)
- 60
- Grille Material
- Plastic
- Hardware Included
- Yes
- Humidity Sensing
- No
- Light (Built In)
- Yes
- Lighted
- Yes
- Lighting Type
- LED
- Lumens/Light Source
- 800
- Motion Sensing
- No
- Nightlight
- No
- Radiation Damper Available
- No
- Retail Peggable
- No
- Selectable Speed
- No
- Sones
- 0.7
- Wall Control Included
- No
Height5.75 in.
Grille Height (In)1.125
Grille Width (In)12.25
Length9.25 in.
Weight9.2 lbs.
Contain Chemical/SolventNo
Contain MercuryNo
Primary ColorWhite
Voltage120
Automatic Shut OffNo
Bulb (Recommended Type)Integrated LED Module
Certification File No.E17814
Color Temperature (Kelvin)3500
DecorativeNo
Duct ShapeRound
Globe MaterialN/A
Grille ShapeSquare
Housing MaterialGalvanized
Installation TypeCeiling;Wall
Light DimmableYes
Lighting Modules (Number Of)1
Lights IncludedYes
Minimum Construction Space Required2" x 6"
Multi-SpeedNo
Product Switch Control TypeWall Control
Recommended Room Size (Sq Ft)75
Room Side Installation PossibleYes
Sones Max RatingN/A
Type ICYes
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- No
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantYes
Warnock Hersey CertificationNo
