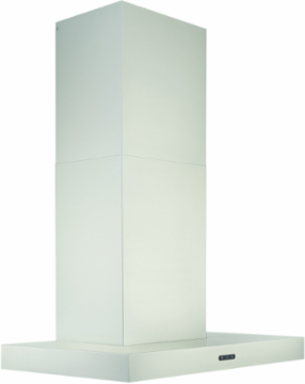

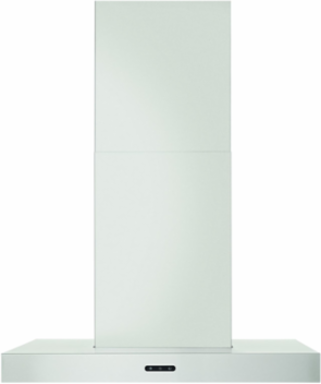

NuTone EW4330SS Broan 460 Max Blower CFM, 30-inch T-Style Chimney Range Hood, Stainless Steel
- MPN: EW4330SS
- UPC: 026715261284
- PPN: BRO-EW4330SS
CAD
$953.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The elegant clean lines of this range hood form to create a sophisticated contemporary design that’s perfect for today’s modern kitchens. Quiet operation and bright LED lighting enhances your cooking experience. While the sleek 3-speed capacitive touch control makes operation and clean up easy.
Features

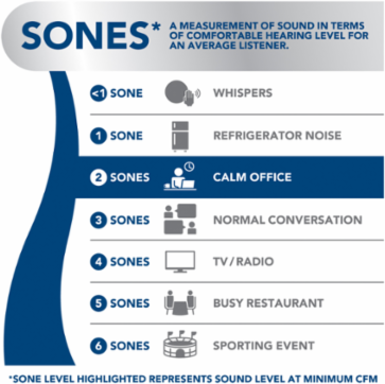

- Quiet 460 Max Blower CFM operates at a best in class 7.5 sones on high and 1.5 sones at normal speed, HVI certified

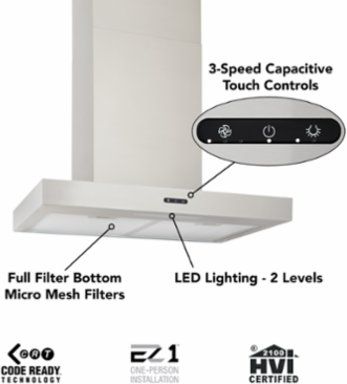

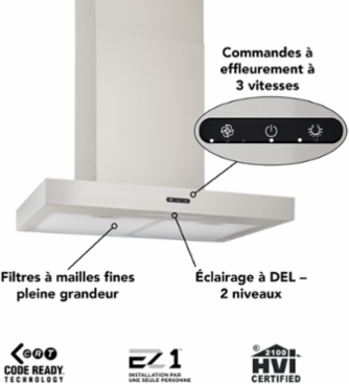

- Tap-touch, three-speed capacitive control features a smooth, easy-to-clean surface
- Bright 2-level LED module included
- CRT provides the ability to meet codes and reduce airflow to 300 CFM
- 10 minute delay-off function keeps hood running after cooking to ensure smoke and odors have cleared the environment

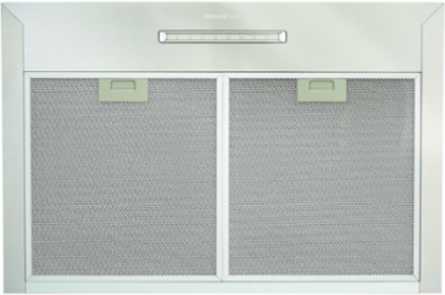

- Dishwasher-safe deluxe filters feature quick-release latch for easy removal
- Optional non-duct kit, filter included, available for indoor exhaust recirculation (Model ARKEW43, purchase separately). Non-duct replacement filters are sold separately (S99010473)
- Install the hood so that the bottom of the unit is 24" to 30" above the cooking surface, mounting height may be affect by ceiling height
- Broan Elite wall mount chimney hood with 460 Max Blower CFM
- 30 in. SS range hood pulls smoke and odors from the air
- LED lighting ensures bright, long-lasting illumination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Duct Connector Size
- 6" Round
- Weight
- 43.6 lbs.
- Width
- 30 in.
- Primary Color
- Stainless Steel
- Voltage
- 120
- Air Flow Method
- Centrifugal Blower
- Audible Alarm
- No
- Blower Included
- Yes
- Built-In Timer
- No
- Bulb Base Type
- LED
- CFM (HVI)
- 400
- Digital Clock
- No
- Duct Direction
- Vertical
- Filter (Number of)
- 2
- Flue Accommodates Ceilings up to (FT)
- 9
- Hardware Included
- Yes
- Indoor/Outdoor
- No
- Light (Number of Levels)
- 2
- Light Source Max Wattage
- 7
- Lighting Lifetime Hours
- 25000
- Lights Included
- Yes
- Material
- Steel
- Minimum Height Above Cooktop (In)
- 24
- Motor Engineered for Cont. Operation
- No
- Noise Insulation System
- No
- Non-Ducted Recirculation Capable
- Yes
- Product Type
- Chimney
- Remote Control
- No
- Sones
- 1.5
- Switch Control Type
- Capacitive Touch
- Wall Control Included
- No
Height27.1875 in.
Length19.6875 in.
Width29.9375 in.
Manufacturer Warranty1 Year
SeriesBroan® Elite EW43 Series Chimney Range Hood
Adjustable Color TemperatureNo
Amperage (Amps)1.53
Battery IncludedNo
Boost ModeNo
Bulb (Recommended Type)Integrated LED Module
Bulbs (Number of)1
Control Speeds3
Dishwasher Safe FilterYes
Duct ShapeRound
Filter TypeAluminum
Frequency (Hz)60
Heat SentryNo
Installation TypeWall Mount
Light Color Rendering Index (CRI)80
LightedYes
Lighting TypeLED
Lumens/Light Source600
Max Blower CFM460
Motion SensingNo
NightlightNo
Non-Ducted Filter/Kit IncludedNo
Product LineDesigner
Range Hood TypeWall Mount
Sones Max Rating7.5
Style/DesignT-Style
Venting MethodsDucted & Non-Ducted
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA-6A
- ADA Compatible
- No
- cETL LIsted
- No
- ENERGY STAR Certified
- No
cUL ListedNo
HVI CertifiedYes
UL ListedYes
Can Be Used to Comply With LEED RequirementsYes
cULus ListedYes
Title 24 CompliantYes
