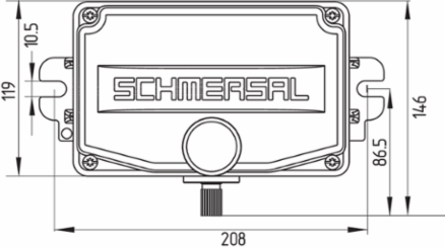

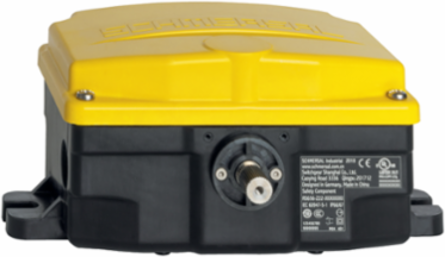

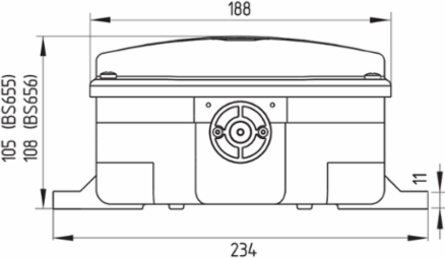

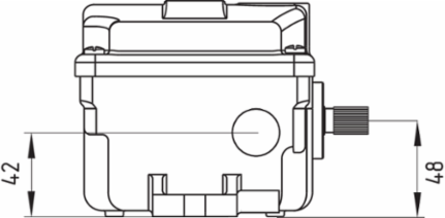

Schmersal 153031630 Heavy-Duty Position Switch - IP67, Thermoplastic, 1,000,000 Operations
- MPN: 153031630
- PPN: SCM-153031630
CAD
$700.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-Duty Position Switch - IP67, Thermoplastic, 1,000,000 Operations
Features
- Platform concept with different function units
- Thermoplastic enclosure
- Wide range of alternative actuators
- Protection class IP66, IP67
- Switching point setting
- Symmetry thanks to toothed, centrally located shaft
- Central connection terminal
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 3 A
- Utilisation category DC-13
- 3 A
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching principleSlow action
Ambient conditions - Insulation values
- Rated insulation voltage U
- 300 V
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Number of auxiliary contacts
- 2
Number of safety contacts2
General data
- Standards
- EN 620 | EN IEC 60947-5-1
- Material of the housing cover
- thermosetting resin
Enclosure materialthermosetting resin
Gross weight2,790 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient temperature-40 ... +70 °C
Mechanical data - Connection technique
- Termination
- Cage clamp
- Cable section, minimum
- 0.5 mm², flexible
Cable entry2 x M25 x 1.5
Cable section, maximum2.5 mm², flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Positionierschritte für den Betätiger10 °
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
