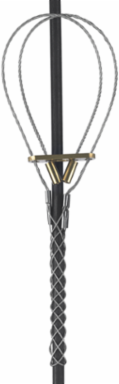

Hubbell Wiring Device-Kellems 073041286 Bus Drop Support Grips, Universal Eye, Galvanized Steel, 0.56-0.73 Inch
- MPN: 073041286
- UPC: 783585330266
- PPN: HBL-073041286
- UNSPSC: 39121719
CAD
$75.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Bus Drop Support Grips, Universal Eye, Wide Range, Galvanized Steel, 0.56-0.73"
Features
- Provide support for flexible cord or bus drop cable at bus duct
- Absorb tension, vibration and pull with no cable damage
- Patented mesh construction
- Closed Mesh
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Cable Diameter Range
- 0.56 in-0.73 in
- Industry Standard(s)
- UL Listed
- Application
- Universal Eye
- Special Features
- Closed Mesh
- Type
- Universal Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Closed Mesh, Single Weave
- Description - Invoice
- UNI EYE, BUS DROP GRIP, .56-.73"
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Hole
- Material
- Steel, Galvanized
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 20 EA
- Case Weight
- 13.850 lb.
- Lowest Level UOM
- Each
Approx Breaking Strength1,000 lb.
Width4.000 in
PerformanceMechanical - Approximate Breaking Strength - 1,000 (4,448);Mechanical - Working Load - 100 (444.8) Lbs. (N)
Cable Size.56"-.73" (1.42-1.85)
StandardUL Listed
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesBus Drop Series
BOX SIZE3.400x22.600x5.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585330266
Case - Total Units100 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- No
