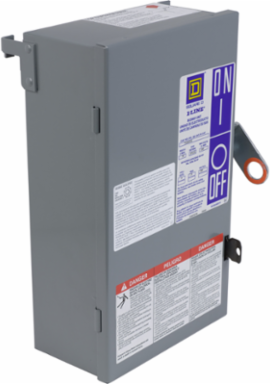

Square D PQ3610GRA 3-Phase Busway I-Line Fusible Plug-in Unit, 100A, 600V, Plug-in Design

MPN: PQ3610GRA
UPC: 785901330394
PPN: SCH-PQ3610GRA
UNSPSC: 39131701

Quote Required

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 3-Phase Busway I-Line Fusible Plug-in Unit from Schneider Electric is engineered for efficient power distribution in commercial and industrial settings. With a robust design rated for 100A and 600V, it ensures reliable electrical performance while simplifying the connection process through its plug-in design. Ideal for applications requiring dependable power management, this component enhances flexibility in system configurations, making it an essential element for modern electrical installations.

Features

Compact and totally enclosed design makes it lightweight and easy to handle
Easy and quick installation, get up to 75% savings in installation time
Utilizes sandwich-type construction to provide superior voltage drop characteristics, even at low power factors
Made of tough, durable and uniform polyester powder coat paint finish
Plated to ensure low surface-to-surface contact resistance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States
Depth	118 mm

Weight	8015 g

Complementary Attributes

Line Rated Current	100-100 A

Ue Rated Operational Voltage	600 V AC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA C22.2 No 27, UL listed file E22182
Carbon Footprint Of The End Of Life Phase C1 To C4	10 kg CO2 eq., 9.846196387875116
Carbon Footprint Of The Manufacturing Phase A1 To A3	39 kg CO2 eq., 38.909921961345326
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	10 AWG...2 AWG 1 ground12 AWG...1/0 AWG 1 phase and neutral
Energy Efficiency Optimized	False
Mounting Mode	plug-in
Phase	3 phase
Product Or Component Type	plug-in unit
Range Of Product	I-Line
Software Version	v6.3.2
Total Lifecycle Carbon Footprint	61 kg CO2 eq.
Database Version	2026-04
Height Nominal	480 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Pep End Of Validity Date Calculated	2031-08-27

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	5.275897884663172, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.2844712463067074, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 kg CO2 eq., 5.227135452734072
Local Publishable Date	2026-09-05
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI1407016EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fuse rejection clips, class R
Fuse Type	H, K or J
Number Of Poles	3P
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	fuse
Returnability	No
Sustainable Packaging	No
Wiring Configuration	4-wire (integral ground bus)
Data Source	extrapolated product
Width Nominal	266 mm
Customs Code	8536509045
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To provide overcurrent protection and a safe means of disconnection for the distribution of low-voltage electrical power from the main busway system to downstream equipment in commercial and industrial applications. For safety purposes, the unit is rated at 600 V AC and 30 A and provides electrical isolation with a rated insulation voltage of 2200 V. The equipment is designed to ensure reliable operation and personnel safety over an expected service life of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	85

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	60.5436229329244
Environmental Disclosure	ENVPEP1407016EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-08-27
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI1407016EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1407016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
