Square D

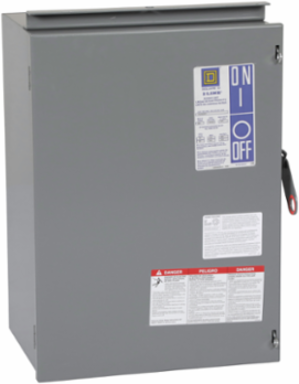

Square D PQ3620G 200A Fusible Plug-in Unit, 600V AC, 3 Pole, I-Line Busway

  • MPN: PQ3620G
  • UPC: 785901263937
  • PPN: SCH-PQ3620G
  • UNSPSC: 39131701

Quote Required

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric PQ3620G is a robust 200A fusible plug-in unit designed for seamless integration with I-Line busway systems, functioning effectively at 600V AC across three poles. This unit offers reliable overcurrent protection, ensuring system performance and safety in various industrial applications. With its easy installation and compatibility with a range of equipment, it serves as an essential component for modern electrical distribution systems, delivering both efficiency and peace of mind to operators.

Features

  • Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices
  • Fusible or with circuit breaker
  • Fusible plug in units available through 1200A
  • Electronic trips and communication packages available for circuit breaker plug in units
  • Reduced installation time with mounting hook alignment to opening

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico
Weight31280 g

Complementary Attributes

Ie Rated Operational Current200 A
Ue Rated Operational Voltage600 V AC

Important Information Attributes

Persona Type IdsLC, OM8, PB, SI
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Certificate AgencyUL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C438 kg CO2 eq., 38.42657804276153
Carbon Footprint Of The Manufacturing Phase A1 To A3152 kg CO2 eq., 151.85307036193163
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1407016EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Number Of Poles3
Product Or Component Typeplug-in unit
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Customs Code8537109170
Functional Unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To provide overcurrent protection and a safe means of disconnection for the distribution of low-voltage electrical power from the main busway system to downstream equipment in commercial and industrial applications. For safety purposes, the unit is rated at 600 V AC and 30 A and provides electrical isolation with a rated insulation voltage of 2200 V. The equipment is designed to ensure reliable operation and personnel safety over an expected service life of 20 years.
Functional Unit Unitunit
Recyclability Potential In %85
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A420.59015418992689, 21 kg CO2 eq.
Carbon Footprint Of The Installation Phase A55.012883416653002, 5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B610 kg CO2 eq., 10.454270905468144
Local Publishable Date2026-09-05
Device TypeBusway & cable - LV busway
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Busbar Descriptionground
Electrical Connectionplug-in
Fuse TypeH, K, J or R
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductI-Line
Software Versionv6.3.2
Total Lifecycle Carbon Footprint226 kg CO2 eq.
Database Version2026-04
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20
Pep End Of Validity Date Calculated2031-08-27

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level0 %
Carbon Footprint226.3369569167412
Environmental DisclosureENVPEP1407016EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-08-27
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1407016EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407016EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typeplug-in unit
Range Of ProductI-Line

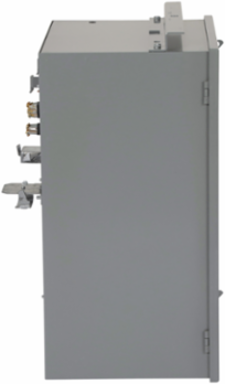

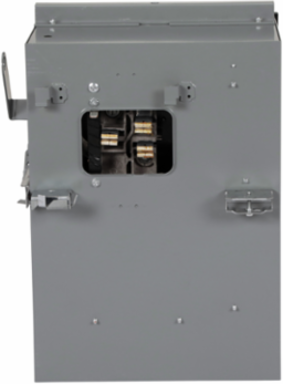

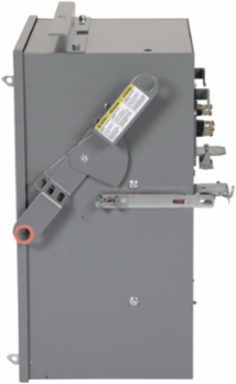

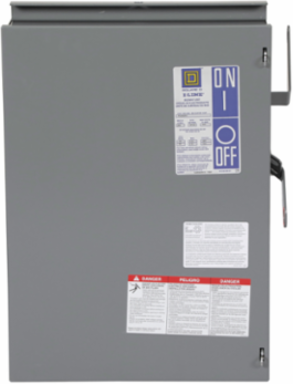

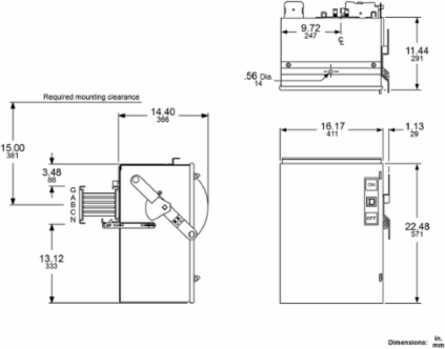

200A Fusible Plug-in Unit, 600V AC, 3 Pole, I-Line Busway
200A Fusible Plug-in Unit, 600V AC, 3 Pole, I-Line Busway
