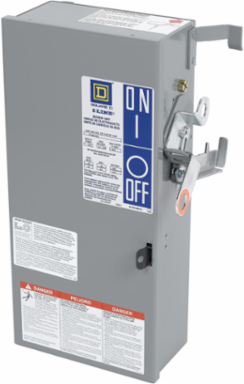

Square D PQ3610G I-Line Busway Plug-in Unit, 100A, 600V AC, 3 Pole with Fusible Disconnect

MPN: PQ3610G
UPC: 785901263920
PPN: SCH-PQ3610G
UNSPSC: 39131701

$3646.17

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 100A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.

Features

Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices
Fusible or with circuit breaker
Fusible plug in units available through 1200A
Electronic trips and communication packages available for circuit breaker plug in units
Reduced installation time with mounting hook alignment to opening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	7961 g

Complementary Attributes

Ie Rated Operational Current	100 A

Ue Rated Operational Voltage	600 V AC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	10 kg CO2 eq., 9.77985894496242
Carbon Footprint Of The Manufacturing Phase A1 To A3	39 kg CO2 eq., 38.647771520183426
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1407016EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Number Of Poles	3
Product Or Component Type	plug-in unit
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8536509045
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To provide overcurrent protection and a safe means of disconnection for the distribution of low-voltage electrical power from the main busway system to downstream equipment in commercial and industrial applications. For safety purposes, the unit is rated at 600 V AC and 30 A and provides electrical isolation with a rated insulation voltage of 2200 V. The equipment is designed to ensure reliable operation and personnel safety over an expected service life of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	85

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	5.240352222059078, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.2758172915592885, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 kg CO2 eq., 5.227135452734072
Local Publishable Date	2026-09-05
Device Type	Busway & cable - LV busway
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Busbar Description	ground
Electrical Connection	plug-in
Fuse Type	H, K, J or R
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	I-Line
Software Version	v6.3.2
Total Lifecycle Carbon Footprint	60 kg CO2 eq.
Database Version	2026-04
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Pep End Of Validity Date Calculated	2031-08-27

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	60.170935431498286
Environmental Disclosure	ENVPEP1407016EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-08-27
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI1407016EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1407016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
