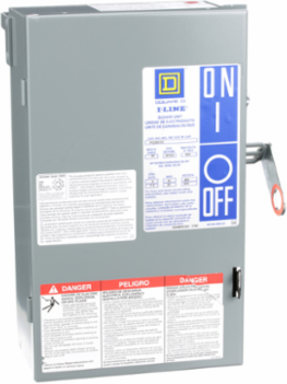

Square D PQ3603G Plug-in Unit, I-Line Busway, Fusible, 30A, 600V AC, 3 Pole
- MPN: PQ3603G
- UPC: 785901263906
- PPN: SCH-PQ3603G
- UNSPSC: 39131701
CAD
$2511.51
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust electrical systems, the plug-in unit from Schneider Electric provides a reliable solution for I-Line busway applications. This fusible 30A unit is rated for 600V AC and features three poles, making it suitable for various power distribution needs. Its design ensures seamless integration within busway systems, enhancing overall efficiency and safety in complex electrical setups. This dependable component is essential for maintaining strong performance in dynamic industrial environments.
Features
- This 3-pole fusible disconnect is built with highly adaptive interior fuse clips that accept standard Class H, K, J, or R overcurrent protection fuses. This flexibility allows industrial facility engineers to customize their short-circuit interrupting capacity up to 200 kA at 480V, making it easy to protect downstream industrial machinery against catastrophic fault currents.
- Boasting a robust 600V AC maximum rating and a 30-amp operational capacity, this unit is purpose-built to distribute power to localized 3-phase machinery, automated assembly systems, and overhead HVAC setups. The heavy-duty internal jaw contacts maintain a low-resistance path, ensuring stable voltage delivery and preventing localized thermal spikes.
- Outfitted with an integrated ground bus attachment (+G configuration), this bus plug establishes a dedicated path to ground the moment it is clamped onto the I-Line track. This design guarantees immediate grounding continuity across your plant floor, protecting field operators from dangerous ground faults and keeping the entire infrastructure compliant with strict NEC and CSA safety codes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Weight | 6569 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 30 A |
|---|
| Ue Rated Operational Voltage | 600 V AC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 8 kg CO2 eq., 8.06982708321293 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 32 kg CO2 eq., 31.8901157035655 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1407016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | plug-in unit |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | referent product |
| Customs Code | 8536509045 |
| Packaging Weight In G | 566.4 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Pep End Of Validity Date Calculated | 2031-08-27 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 4.324064030486884, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.05273756918138, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 2 kg CO2 eq., 1.548780874884169 |
| Local Publishable Date | 2026-09-05 |
| Device Type | Busway & cable - LV busway |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Busbar Description | ground |
| Electrical Connection | plug-in |
| Fuse Type | H, K, J or R |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Software Version | v6.3.2 |
| Total Lifecycle Carbon Footprint | 47 kg CO2 eq. |
| Database Version | 2026-04 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To provide overcurrent protection and a safe means of disconnection for the distribution of low-voltage electrical power from the main busway system to downstream equipment in commercial and industrial applications. For safety purposes, the unit is rated at 600 V AC and 30 A and provides electrical isolation with a rated insulation voltage of 2200 V. The equipment is designed to ensure reliable operation and personnel safety over an expected service life of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 85 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 46.885525261330855 |
| Environmental Disclosure | ENVPEP1407016EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-08-27 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1407016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407016EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | plug-in unit |
|---|
| Range Of Product | I-Line |
|---|
