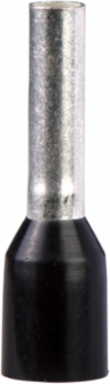

Schneider Electric DZ5CE015 Linergy TR Cable Ends, Single Conductor, Medium Size, 1.5mm², 10 Sets of 100
- MPN: DZ5CE015
- PPN: SCH-DZ5CE015
CAD
$0.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy cable end insulated without marker tag holder. It applied to single conductor with 1.5 mm² cable cross section. It has black surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Linergy
- Product Or Component Type
- cable end
- Cable Cross Section
- 1.5-1.5 mm²
- Quantity Per Set
- 10 sets of 100
StandardsNF C 63-023
Type Of Packingstring of bags
Cable End Sizemedium
Complementary
- Tube Length
- 8 mm
- Number Of Cables
- 1
- Length
- 14 mm
- Colour
- black
- Bezel Material
- halogen-free plastic
- Additional Information
- without marker tag holder
Bezel SizeØ 4 mm
Cable End Typesingle conductor
Net Weight0.12 kg
Awg GaugeAWG 16
Tube Materialcopper ISO 1337
Tube Diameter2 mm
Environment
- Product Certifications
- UL
Ambient Air Temperature For Operation-20-105 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304013EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
