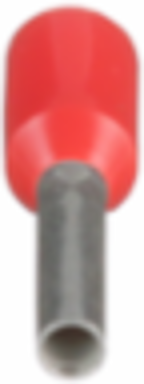

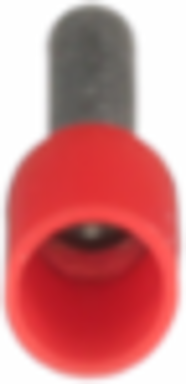

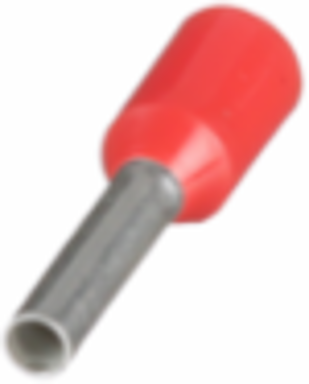

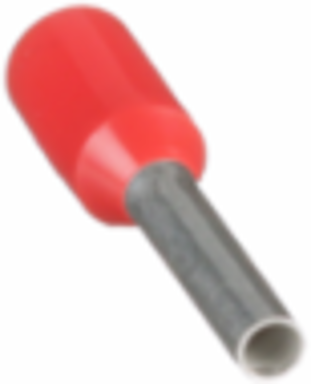

Panduit FSD77-8-D Pan-Term® FSD77-8-D Covered Single Wire Ferrules
Panduit FSD77-8-D Pan-Term® FSD77-8-D Covered Single Wire Ferrules
- MPN: FSD77-8-D
- UPC: 074983762521
- PPN: PAN-FSD77-8-D
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.14/ EA
Description
Covered ferrules single wire red DIN end sleeve, 1.0mm², 8mm pin length.
Specifications
Packaging Details
- UPC
- 07498376252
- Standard Package Volume Ft3
- 0.0896
- Std Package Height In
- .85
- Std Package Length In
- 4.75
- Std Package Width In
- 3.2
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 500
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Piece
- REACH Status
- N
- ARRA Compliant
- Y
- Lead Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 2,835,000
- Pallet Weight
- 850.5000
GTIN Package00074983762521
Standard Package Weight Pounds0.1500
Std Package Height MM21.59
Std Package Length MM120.65
Std Package Width MM81.28
UOM EA PKPK
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983762521
California Pro65 CancerNo
Mercury Content IndicatorN
Restricted Use of Hazardous SubstancesN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
Specifications
- Country of Origin
- Germany
- Product Segment
- IEI
- Overall Length (In.)
- 0.57
- Inside Diameter (mm)
- 1.5
- Maximum Operating Temperature (°C)
- 105
- Minimum Metric Conductor Size (mm²)
- 1
- Maximum Wire Insulation Diameter (In.)
- 0.12
- Finish/Coating
- Tin-Plated
- Color Code
- Red
- Flammability Rating
- UL94-HB
- Wire Strip Length (mm)
- 11.9
- Maximum Metric Conductor Size (mm²)
- 1
- Minimum Operating Temperature (°C)
- -54
- Overall Length (mm)
- 14.5
- Ferrule Type
- Single Wire Standard
- Packaging Type
- Bag
Any Reason Not to SellN
For Use WithCT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Minimum Operating Temperature (°F)-60
Wire Strip Length (In.)15/32
Product TypeCovered Single Wire Ferrule
Base MaterialCopper
UL Temperature Rating (°C)105
Pin Length (In.)0.31
Inside Diameter (In.)0.06
Cover MaterialPolypropylene
CSA Temperature Rating (°C)105
Maximum Wire Insulation Diameter (mm)3
Sub BrandPan-Term®
Pin Length (mm)8
Maximum Operating Temperature (°F)221
