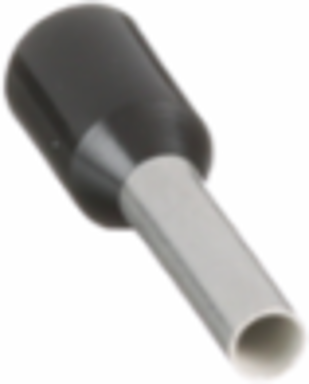

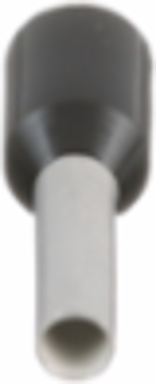

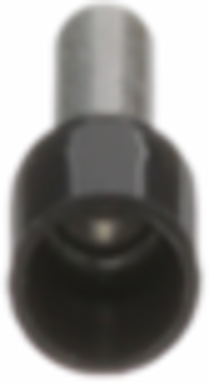

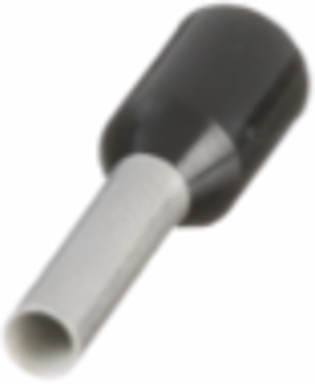

Panduit FSD78-8-D Pan-Term® FSD78-8-D Covered Single Wire Ferrules
- MPN: FSD78-8-D
- UPC: 074983762552
- PPN: PAN-FSD78-8-D
- UNSPSC: 39121409
CAD
$0.19
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Covered ferrules single wire black DIN end sleeve, 16 AWG, 8mm pin length.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Product Segment | IEI |
| Overall Length (In.) | 0.57 |
| Cover Material | Polypropylene |
| Color Code | Black |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 15/32 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Product Type | Covered Single Wire Ferrule |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Maximum Operating Temperature (°F) | 221 |
| Packaging Type | Bag |
| Ferrule Type | Single Wire Standard |
| Any Reason Not to Sell | N |
|---|---|
| Minimum Metric Conductor Size (mm²) | 1.5 |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Wire Strip Length (mm) | 11.9 |
| Flammability Rating | UL 94 HB |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°F) | -60 |
| Sub Brand | Pan-Term® |
| Overall Length (mm) | 14.5 |
| Base Material | Copper |
| Minimum Operating Temperature (°C) | -54 |
| CSA Temperature Rating (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| UL Temperature Rating (°C) | 105 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Copper Conductor Size | 16 AWG |
Packaging Details
| UPC | 07498376255 |
|---|---|
| Standard Package Volume Ft3 | 0.0896 |
| Std Package Height In | 1.1 |
| Std Package Length In | 4.8 |
| Std Package Width In | 2.5 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 500 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 2,835,000 |
| Pallet Weight | 850.5000 |
| GTIN Package | 00074983762552 |
|---|---|
| Standard Package Weight Pounds | 0.1500 |
| Std Package Height MM | 27.94 |
| Std Package Length MM | 121.92 |
| Std Package Width MM | 63.5 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983762552 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 500.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
