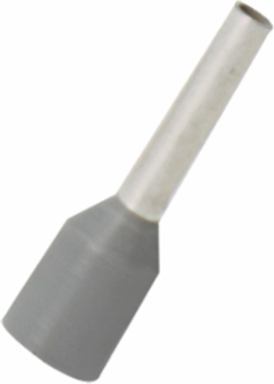

Panduit FSDX76-8-D Pan-Term® FSDX76-8-D Covered single wire ferrules
- MPN: FSDX76-8-D
- UPC: 074983333752
- PPN: PAN-FSDX76-8-D
- UNSPSC: 39121409
CAD
$0.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Polypropylene insulated ferrules single wire gray DIN color expanded end sleeve, #18 AWG (0.75mm²) Wire Size, 0.31 (8.0mm) Pin Length.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Product Segment | IEI |
| Wire Strip Length (mm) | 11.9 |
| Ferrule Type | Single Wire Standard |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Outer Diameter (mm) | 1.6 |
| Maximum Wire Insulation Diameter (mm) | 3.4 |
| Flammability Rating | UL 94 HB |
| Packaging Type | Bag |
| Maximum Operating Temperature (°C) | 105 |
| Outer Diameter (In.) | 0.06 |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 0.75 |
| Wire Strip Length (In.) | 15/32 |
| Copper Conductor Size | 18 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Color Code | Gray |
| Base Material | Copper |
| CSA Temperature Rating (°C) | 105 |
| UL Temperature Rating (°C) | 105 |
| Pin Length (mm) | 8 |
| Pin Length (In.) | 0.31 |
| Cover Material | Polypropylene |
| Product Type | Covered Single Wire Ferrule |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 0.55 |
| Maximum Operating Temperature (°F) | 221 |
| Inside Diameter (mm) | 1.3 |
| Overall Length (mm) | 14 |
| Inside Diameter (In.) | 0.05 |
Packaging Details
| UPC | 07498333375 |
|---|---|
| Standard Package Volume Ft3 | 0.0033 |
| Std Package Height In | 1.1 |
| Std Package Length In | 4.05 |
| Std Package Width In | 3.35 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 500 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 2,500.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983333752 |
|---|---|
| Standard Package Weight Pounds | 0.1100 |
| Std Package Height MM | 27.94 |
| Std Package Length MM | 102.87 |
| Std Package Width MM | 85.09 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983333752 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
