Klein Tools VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set
- MPN: VDV501-770
- UPC: 092644583957
- PPN: KLT-VDV501-770
- UNSPSC: 41111917
CAD
$709.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

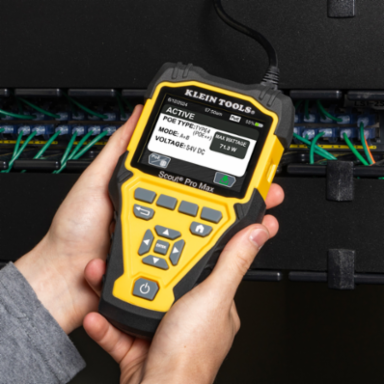

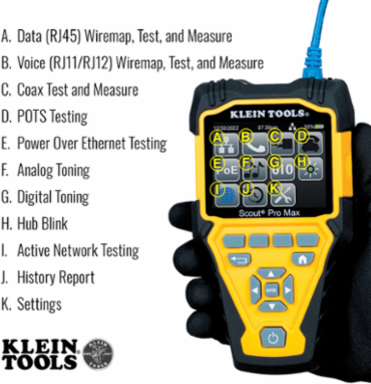

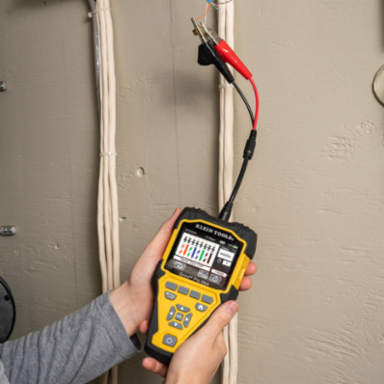

Scout® Pro Max tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing. It measures cable lengths (via TDR) and detects distance to faults. Generate reports to show custom test history. Tests shielded and unshielded cables. Trace up to 20 locations at a time with included remotes. Perform hub blink testing, measure active and passive Power over Ethernet (PoE). Test POTS, and detect active network capabilities.
Features
- Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults
- Full color back-lit screen and internal memory to store, download, and output up to 200 test results for easy report management

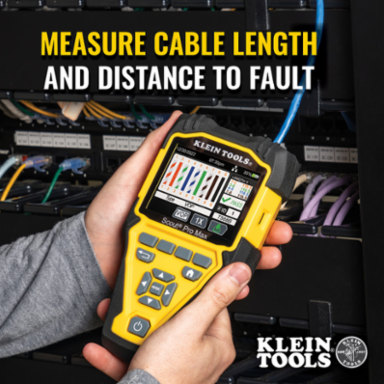

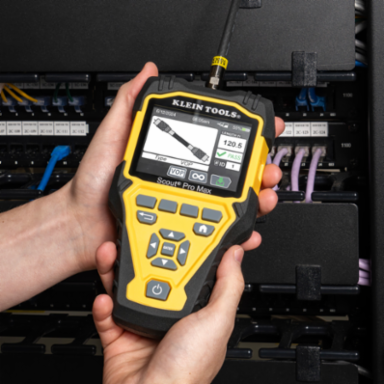

- Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
- Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)

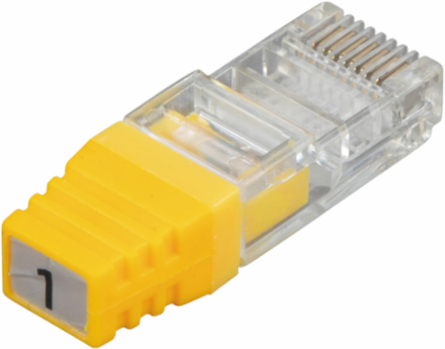

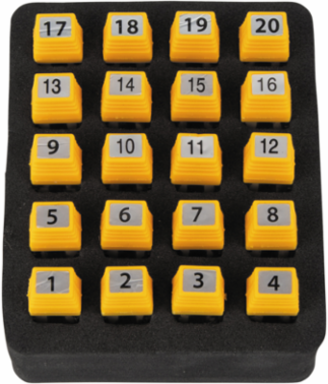

- Locate and identify up to 20 locations with ID remotes for greater cable management and organization
- Detect network capabilities and connection speeds up to 10G bps

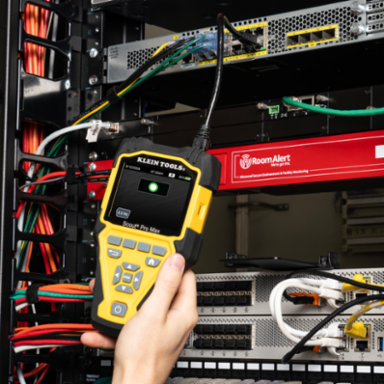

- Initiate hub blink to easily identify and locate cables on device and POTS testing
- Measures Cable Length; Backlit LCD; Hub Blink
Documentation & Downloads
Specifications
Key Specifications
- Batteries
- 3 x AA alkaline
- Cable Type
- DATA -, Shielded or Unshielded, CAT6; COAXIAL - RJ11, RJ12, RJ45
- Application
- Cable Testing
- Included

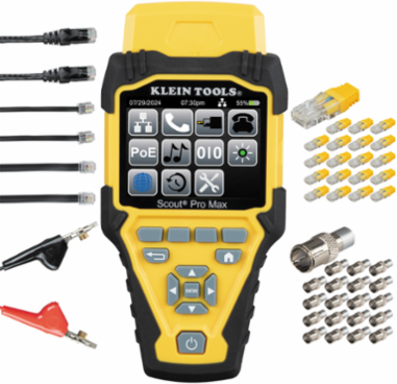

- Scout® Pro Max Network Cable Tester, USB-C to USB-A cable, Female Coax-F to Angled-Bed-of-Nails Cable, (2) RJ12 to RJ12 Cables, (2) RJ11 to RJ11 Cables, (2) RJ45 CAT6 to RJ45 CAT6 Cables, (20) RJ45 LanMap™ Location ID Remotes, (20) F-Connector CoaxMap™ Location ID Remotes, Female F-Barrel Connector, 3 x AA Batteries, 1 x CR2032 Battery
- Multiple Style Tone Generator
- Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately
- Connection & Adapter Types
- RJ11, RJ12, RJ45, Coax F
- Battery Life
- Active - 15 hr; Standby - 1 yr
- Cable Identification
- Includes 20 Remote Locators
- Overall Length
- 8 Inch (20.3 cm)
- Height
- 1.6300 in
- Depth
- 7.1600 in
Test & Measure TypesEthernet/Data and Coaxial
TypeTwisted Pair, DATA, Voice, LAN, and Coaxial
MaterialPlastic and Metal
Supported Remotes41
Drop Protection6.6' (2 m)
DisplayBacklit LCD
Accuracy± (2% + 3' or 1 m) with Known VoP and Consistent Cable Parameters
Overall Width4 Inch (10.2 cm)
Overall Height1.5 Inch (3.8 cm)
Width3.9300 in
Weight3.7000 lbs
