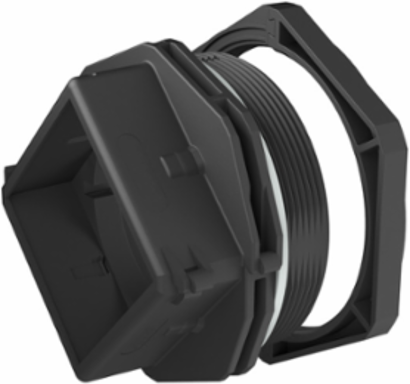

Weidmuller 2584130000 CABTITE CGS M50 BK
- MPN: 2584130000
- PPN: WDM-2584130000
CAD
$50.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
separable cable gland, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 24.7 mm, M 50, IP54, IP65, IP66
Documentation & Downloads
Specifications
Classifications
| ETIM 6.0 | EC000441 |
|---|---|
| eClass 9.0 | 27-14-44-32 |
| eClass 10.0 | 27-14-44-32 |
| ETIM 7.0 | EC000441 |
|---|---|
| eClass 9.1 | 27-14-44-32 |
General Information
| Tightening torque, min. | 6.8 Nm |
|---|---|
| UL 94 flammability rating | V-0 |
| Opening diameter | 50 mm |
| Length of thread | 15 mm |
| AF size 1 | 68 mm |
| Halogen | No |
| Sealing | TPE |
| Tightening torque, max. | 7 Nm |
|---|---|
| Sealing element | 1 large sealing element or 4 small sealing elements |
| External thread | M 50 |
| Pitch of thread | 1.5 mm |
| AF size 2 | 58 mm |
| Silicone | No |
| Material | Polyamide, glass fibre-reinforced |

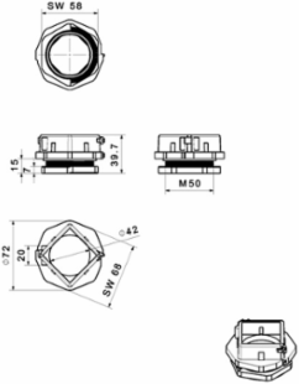

Dimensions And Weights
| Length | 39.7 mm |
|---|---|
| Width | 72 mm |
| Height | 24.7 mm |
| Depth | 39.7 mm |
| Net weight | 29.1 g |
| Length (inches) | 1.563 inch |
|---|---|
| Width (inches) | 2.835 inch |
| Height (inches) | 0.972 inch |
| Depth (inches) | 1.563 inch |
Approvals
| ROHS | Conform |
|---|
