Weidmuller 2584110000 CABTITE LNS M20 BK
- MPN: 2584110000
- PPN: WDM-2584110000
CAD
$3.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

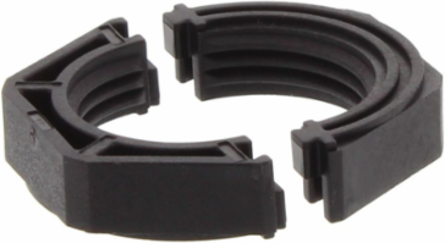

separable locknut, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 28 mm, Width: 28 mm, Depth: 7 mm, -40 °C…120 °C
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC000940
- eClass 9.0
- 27-14-44-24
- eClass 10.0
- 27-14-44-24
ETIM 7.0EC000940
eClass 9.127-14-44-24

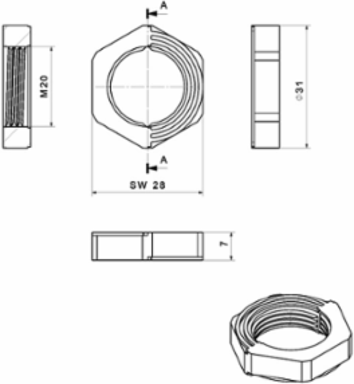

Dimensions And Weights
- Width
- 28 mm
- Height
- 28 mm
- Depth
- 7 mm
- Net weight
- 2.8 g
Width (inches)1.102 inch
Height (inches)1.102 inch
Depth (inches)0.276 inch
Diameter29 mm
General Information
- UL 94 flammability rating
- V-0
- Pitch of thread
- 1.5 mm
- AF size 2
- 29 mm
- Silicone
- No
External threadM 20
AF size 128 mm
HalogenNo
MaterialPolyamide, glass fibre-reinforced
Approvals
- ROHS
- Conform
