Weidmuller 2584160000 CABTITE CGS M32 BK
- MPN: 2584160000
- PPN: WDM-2584160000
CAD
$29.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

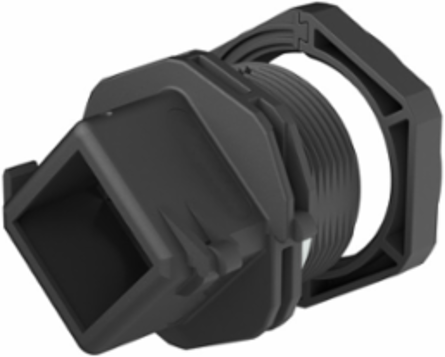

separable cable gland, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 23.7 mm, M 32, IP54, IP65, IP66
Documentation & Downloads
Specifications
General Information
| Tightening torque, min. | 3.8 Nm |
|---|---|
| UL 94 flammability rating | V-0 |
| Opening diameter | 32 mm |
| Length of thread | 15 mm |
| AF size 1 | 38 mm |
| Halogen | No |
| Sealing | TPE |
| Tightening torque, max. | 4 Nm |
|---|---|
| Sealing element | 1 small sealing element |
| External thread | M 32 |
| Pitch of thread | 1.5 mm |
| AF size 2 | 40 mm |
| Silicone | No |
| Material | Polyamide, glass fibre-reinforced |

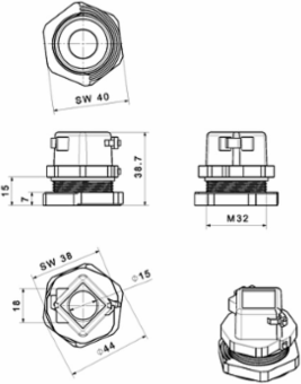

Dimensions And Weights
| Length | 38.7 mm |
|---|---|
| Width | 40 mm |
| Height | 23.7 mm |
| Depth | 38.7 mm |
| Net weight | 12.4 g |
| Length (inches) | 1.524 inch |
|---|---|
| Width (inches) | 1.575 inch |
| Height (inches) | 0.933 inch |
| Depth (inches) | 1.524 inch |
Classifications
| ETIM 6.0 | EC000441 |
|---|---|
| eClass 9.0 | 27-14-44-32 |
| eClass 10.0 | 27-14-44-32 |
| ETIM 7.0 | EC000441 |
|---|---|
| eClass 9.1 | 27-14-44-32 |
Approvals
| ROHS | Conform |
|---|
