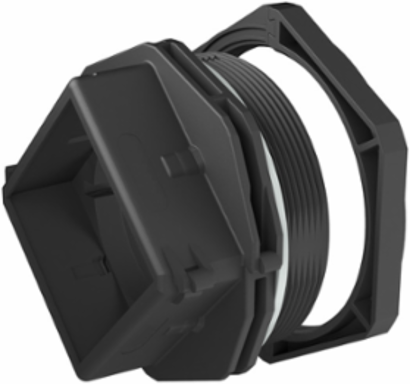

Weidmuller 2584150000 CABTITE CGS M40 BK
- MPN: 2584150000
- PPN: WDM-2584150000
CAD
$33.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
separable cable gland, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 24.7 mm, M 40, IP54, IP65, IP66
Documentation & Downloads
Specifications
General Information
- Tightening torque, min.
- 6.8 Nm
- UL 94 flammability rating
- V-0
- Opening diameter
- 40 mm
- Length of thread
- 15 mm
- AF size 1
- 68 mm
- Halogen
- No
- Sealing
- TPE
Tightening torque, max.7 Nm
Sealing element1 large sealing element or 4 small sealing elements
External threadM 40
Pitch of thread1.5 mm
AF size 248 mm
SiliconeNo
MaterialPolyamide, glass fibre-reinforced

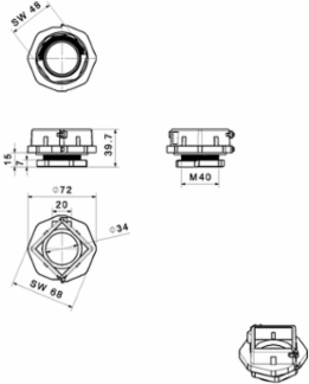

Dimensions And Weights
- Length
- 39.7 mm
- Width
- 72 mm
- Height
- 24.7 mm
- Depth
- 39.7 mm
- Net weight
- 28.2 g
Length (inches)1.563 inch
Width (inches)2.835 inch
Height (inches)0.972 inch
Depth (inches)1.563 inch
Classifications
- ETIM 6.0
- EC000441
- eClass 9.0
- 27-14-44-32
- eClass 10.0
- 27-14-44-32
ETIM 7.0EC000441
eClass 9.127-14-44-32
Approvals
- ROHS
- Conform
