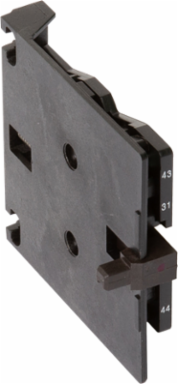

ABB CAL16-11B CAL16-11B Auxiliary Contact Block
- MPN: CAL16-11B
- PPN: ABB-CAL16-11B
- UNSPSC: 39121500
CAD
$138.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2 pole screw type right side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Specifications
Dimensions
- Product Net Width
- 12.5 mm
- Product Net Height
- 68 mm
Product Net Depth / Length70 mm
Product Net Weight0.05 kg
Technical
- Connecting Terminals (delivered in open position)
- M 3.5 (+,-) pozidriv 2 screw with cable clamp
- Power Loss
- at Rated Operating Conditions per Pole 0.2 W
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Rated Operational Current DC-13 (Ie)
- (24 V) 6 A(48 V) 6 A(72 V) 4 A(125 V) 1.8 A(250 V) 0.6 A
- Short-Circuit Protective Devices
- Auxiliary Circuit - gG Type Fuses 10 A
- Suitable for Product Class
- Block Contactors
Minimum Switching Capacity0.25 VA/ 12 V / 5 mA
Rated Frequency (f)Supply Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)(500 V) 1 A(690 V) 1 A(24 / 127 V) 6 A(220 / 240 V) 6 A(380 / 400 V) 4 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 100 Afor 1 s 50 A
Suitable ForEH175EH210EH260EH300EH370EH450EH550EH700EH800EH1200EHDB220EHDB280EHDB360EHDB520EHDB650EHDB800EHDB960EK110EK150EK175EK210EK370EK550EK1000
Technical InformationAUXILIARY CONTACT
Classifications
- eClass
- V11.1 : 27371302
- ETIM 9
- EC000041 - Auxiliary contact block
E-Number (Finland)3846770
Object Classification CodeK
Environmental
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- RoHS Information
- 2CMT2021-006277
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Degree of ProtectionIP20
WEEE B2C / B2BBusiness To Business
Ordering
- Minimum Order Quantity
- 1 piece
- Product Main Type
- CAL16
Customs Tariff Number85369010
