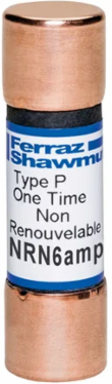

Mersen NRN6 Canadian Fuse 250V 6A Ferrule Mount Class H, 10kA Short Circuit Rating
- MPN: NRN6
- UPC: 068938999667
- PPN: FER-NRN6
CAD
$3.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen NRN (250V) and NRS (600V) fuses are standard non-time delay fuses, with a 10kA short circuit rating. 250 Volt NRN 15 amp through 60 amp fuses are certified as Type "P" fuses, satisfying the Canadian Electrical Code for low melting-point non-time delay fuses. Also qualifying for Type "P" are OTN15 through OTN60, which are Class K-5 fuses with a 50kA short circuit rating (found in the OT/OTS section of this cata log).
Features
- Engineered explicitly for low-voltage, general-purpose applications, this Class H cartridge fuse provides a reliable 10kA short-circuit interrupting rating. It acts as a critical line of defense for lighting circuits, small appliances, and legacy control panels by immediately severing the circuit when an overcurrent event is detected. This non-time delay design ensures sensitive components are protected from dangerous thermal spikes.
- Featuring standard ferrule-style copper contacts, this 6 Amp electrical fuse measures exactly 14.2 mm in diameter by 50.8 mm in length (9/16 x 2 inches). It snaps securely into standard 250V fuse blocks and disconnect switches without requiring structural modifications or retrofitting kits. The tight physical clip connection minimizes contact resistance, preventing localized overheating inside your distribution equipment.
- Manufactured by Mersen, this industrial cartridge fuse meets stringent safety standards under CSA File Number 1421-01. While NRN models spanning 15A to 60A hold the explicit low-melting-point Type "P" designation under the Canadian Electrical Code (CEC), this 6A low-voltage fuse serves as an approved, dependable replacement for standard branch circuits up to 250VAC. It gives commercial electricians and maintenance managers total compliance peace of mind during routine facility inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V
- Short Circuit Rating
- 10 kA
- AC or DC
- AC
- Fuse Class
- Class H
- Length
- 2 in
- Weight
- 0.04 lb
- Connection/Terminal Material
- Copper
- Certification
- UL/CSA Listed
Amperage6 A
Frequency50/60 Hz
Fuse TypeNon-Time Delay
TypeType P
MountingClip
Body/Insulating MaterialPaper
Connection/Terminal TypeFerrule
ComplianceCanadian Electrical Code
