Mersen FESF350 Fuse FES – HRC-II 600VAC 460VDC 350A Blade FESF

MPN: FESF350
UPC: 068938908386
PPN: FER-FESF350

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$155.03/ EA

Qty:

Loading add to cart quantity...

Description

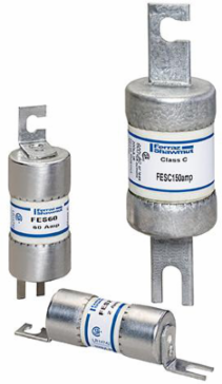

Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

Specifications

Rated voltage AC UL: 600 V

Frequency (Hz): 50/60 Hz

ROHS Compliant: Yes

Fuse Class: Class C

AC Max I.R./Breaking Capacity: I1: 200 kA

Connection/Terminal Type: Blade

Length: 5.38 in

Rated voltage DC UL460 V

Ampere Rating350 A

AC or DCAC/DC

MountingBolted

Connection/Terminal MaterialSilver-Plated Brass

Body/Insulating MaterialPolyTube

Weight1.3 lb
