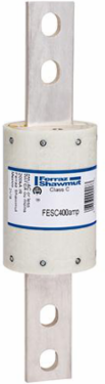

Mersen FESC400 Canadian Fuse 600V 400A Class C Blade Mount, 2 Inch Diameter, Bolted Mounting
- MPN: FESC400
- UPC: 068938904203
- PPN: FER-FESC400
CAD
$145.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Fuse Class | Class C |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Type | Blade |
| Length | 8.25 in |
| Rated voltage DC UL | 460 V |
|---|---|
| Ampere Rating | 400 A |
| AC or DC | AC/DC |
| Mounting | Bolted |
| Connection/Terminal Material | Silver-Plated Brass |
| Body/Insulating Material | PolyTube |
| Weight | 1.5 lb |
