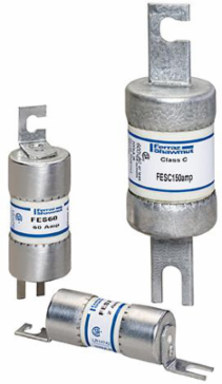

Mersen FESC450 Canadian Fuse 600V 450A Blade Mount Class C, 8.25 Inch Length, Fast-Acting

MPN: FESC450
UPC: 068938908348
PPN: FER-FESC450

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$270.55/ EA

Qty:

Loading add to cart quantity...

Description

Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.

Specifications

Rated voltage AC UL: 600 V

Frequency (Hz): 50/60 Hz

ROHS Compliant: Yes

Fuse Class: Class C

AC Max I.R./Breaking Capacity: I1: 200 kA

Connection/Terminal Type: Blade

Length: 8.25 in

Rated voltage DC UL450 V

Ampere Rating450 A

AC or DCAC/DC

MountingBolted

Connection/Terminal MaterialSilver-Plated Brass

Body/Insulating MaterialPolyTube

Weight1.5 lb
